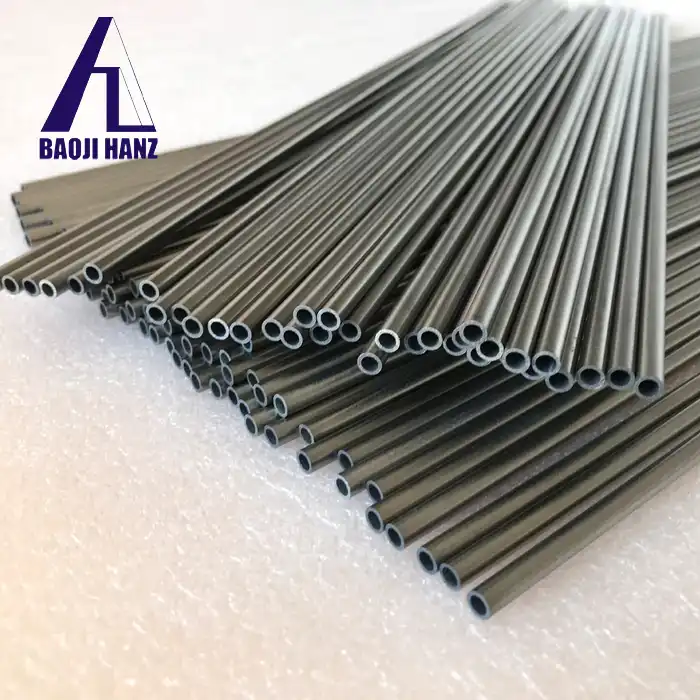

What is Nitinol Tubing and How Does It Work in High-Temperature Environments?

When engineering systems face extreme thermal conditions, traditional materials often fail spectacularly. Imagine a critical component in an aerospace application suddenly losing its structural integrity at 800°C, or medical devices becoming unreliable when exposed to sterilization temperatures. Nitinol tubing for high-temperature applications offers shape memory, superelasticity, and corrosion resistance, making it ideal for demanding industries. These revolutionary nitinol tubes provide engineers with a sophisticated solution that maintains performance reliability across extreme temperature ranges, transforming how we approach challenging thermal environments in medical devices, automotive systems, and industrial applications.

Understanding Nitinol Tubes Fundamentals

Nitinol tubes represent one of the most remarkable achievements in materials science, combining the properties of nickel and titanium to create a smart material that responds predictably to temperature changes. The fundamental structure of these superelastic nitinol tubes lies in their unique crystalline arrangement, which undergoes reversible phase transformations between two distinct states. At high temperatures, nitinol assumes an interpenetrating simple cubic structure referred to as austenite (also known as the parent phase). At low temperatures, nitinol spontaneously transforms to a more complicated monoclinic crystal structure known as martensite (daughter phase). This transformation mechanism enables nitinol tubes to exhibit extraordinary mechanical properties that conventional materials simply cannot match. The chemical composition of these medical use nitinol tubes typically consists of approximately 55-56% nickel and 44-45% titanium, with precise control over trace elements such as carbon, hydrogen, oxygen, and nitrogen. This composition ensures optimal performance characteristics, with the Austenite Finish Temperature (Af) ranging from 0-20 degrees Celsius, making them suitable for various applications. High-precision manufacturing processes enable production of nitinol tubes with outside diameters ranging from 0.1mm to 30mm, wall thicknesses as thin as 0.05mm, and lengths up to 2000mm, meeting diverse industrial requirements.

• Phase Transformation Mechanics in Nitinol Tubes

The remarkable behavior of nitinol tubes stems from their ability to undergo stress-induced martensitic transformation, a phenomenon that allows the material to accommodate significant deformation while maintaining structural integrity. During loading, the austenite phase transforms to martensite, enabling the material to undergo substantial strain without permanent deformation. Upon unloading, the reverse transformation occurs, returning the nitinol tubes to their original configuration. This process can occur millions of times without degradation, making these tubes invaluable for high-cycle applications. The transformation temperatures play a crucial role in determining the operational characteristics of superelastic nitinol tubes. The Austenite start (As) and finish (Af) temperatures define when the material transitions from martensite to austenite during heating, while the Martensite start (Ms) and finish (Mf) temperatures govern the reverse transformation during cooling. By carefully controlling these transformation temperatures through heat treatment and composition adjustment, manufacturers can tailor nitinol tubes for specific applications, ensuring optimal performance across different temperature ranges.

High-Temperature Performance of Superelastic Nitinol Tubes

High-temperature environments present unique challenges that test the limits of conventional materials, but superelastic nitinol tubes demonstrate exceptional stability and performance under these demanding conditions. Nitinol tubing and titanium alloys transfer heat differently. Nitinol tubing has lower heat transfer ability. In its austenite phase, it transfers heat at 0.18 W/cm°C. In the martensite phase, this drops to 0.086 W/cm°C. These changes happen because of how its atoms are arranged. This thermal behavior makes nitinol tubes particularly suitable for applications where controlled heat transfer is essential, such as in thermal management systems and high-temperature processing equipment. The mechanical properties of nitinol tubes remain remarkably stable even at elevated temperatures, with ultimate tensile strength exceeding 1000 MPa and fracture elongation maintaining at least 10% even under thermal stress. The loading plateau stress at 3% strain remains above 380 MPa, ensuring reliable performance in structural applications. Perhaps most importantly, the permanent set after 6% strain stays below 0.3%, demonstrating the exceptional recovery capabilities of these materials even after significant deformation at high temperatures.

• Thermal Stability and Oxidation Resistance

One of the most significant advantages of nitinol tubes in high-temperature applications is their exceptional resistance to oxidation and thermal degradation. The protective oxide layer that forms on the surface of nitinol tubes provides excellent corrosion resistance, even in chemically aggressive environments at elevated temperatures. This characteristic makes them particularly valuable in chemical plants, marine applications, and oil well logging operations where both high temperatures and corrosive conditions are present simultaneously. The coefficient of thermal expansion (CTE) of nitinol tubes, measured at 11×10^-6 °K, provides excellent dimensional stability across wide temperature ranges. This property is crucial for precision applications where thermal cycling could otherwise cause dimensional instability or mechanical failure. The melting point of 1310°C provides substantial safety margins for most industrial applications, while the density of 6.5 g/cm³ offers an excellent strength-to-weight ratio for aerospace and automotive components.

Industrial Applications of Medical Use Nitinol Tubes

Medical use nitinol tubes have revolutionized numerous industries through their unique combination of biocompatibility, mechanical properties, and thermal stability. For instance, superelastic nitinol tubing can bend or compress under stress and recover its shape instantly, even at body temperature (37°C). This makes it ideal for dynamic applications requiring high flexibility In cardiovascular applications, these tubes form the backbone of self-expanding stents, guidewires, and other interventional devices that must function reliably within the human body's thermal environment. The aerospace industry has embraced nitinol tubes for actuator systems, thermal management components, and structural elements that must operate across extreme temperature ranges. In automotive applications, these tubes serve as components in exhaust systems, engine management systems, and safety devices where high-temperature stability is paramount. The power generation industry utilizes nitinol tubes in heat exchangers, turbine components, and control systems that must maintain performance under continuous thermal cycling.

• Oil and Gas Industry Applications

The oil and gas industry presents some of the most challenging high-temperature environments, where traditional materials often fail due to the combination of extreme heat, pressure, and chemically aggressive conditions. Nitinol tubes excel in these applications, particularly in oil well logging equipment where temperatures can exceed 200°C and corrosive downhole fluids attack conventional materials. The exceptional fatigue resistance and corrosion immunity of nitinol tubes make them ideal for downhole tools, completion equipment, and production components. Subsea applications benefit significantly from the corrosion resistance and thermal stability of nitinol tubes. Marine environments combine saltwater corrosion with temperature variations that challenge conventional materials, but nitinol tubes maintain their mechanical properties and dimensional stability under these conditions. The ability to withstand both high-temperature processing and low-temperature service conditions makes these tubes invaluable for offshore production platforms and subsea processing systems.

Manufacturing Excellence and Quality Standards

The production of high-quality nitinol tubes requires sophisticated manufacturing processes and stringent quality control measures. Advanced manufacturing techniques include seamless tube production and precision welding methods that ensure consistent wall thickness and surface quality. The manufacturing process involves precise control of chemical composition, with nickel content maintained between 55.4% and 56.2%, and strict limits on impurities such as carbon (≤0.07%), hydrogen (≤0.005%), oxygen (≤0.050%), and nitrogen (≤0.05%). Surface treatment options for nitinol tubes include black oxide surfaces for enhanced corrosion resistance, medical grade polished surfaces for biocompatibility, and centerless ground surfaces for precision applications. These surface treatments are carefully controlled to ensure optimal performance characteristics while maintaining the integrity of the underlying nitinol structure. Quality standards compliance includes ASTM F2063-05, ASTM F2633-07, and customer-specified requirements, ensuring that each batch meets rigorous performance criteria.

• Advanced Manufacturing Capabilities

Modern nitinol tube manufacturing employs sophisticated deep hole working techniques that enable production of large diameter, thin-wall configurations previously impossible with conventional materials. The precision achievable in current manufacturing processes allows for outside diameters as small as 0.1mm and wall thicknesses as thin as 0.08mm when machined. Length capabilities extend up to 2000mm, with the specific maximum length determined by the relationship between outside diameter and wall thickness. Quality control measures include comprehensive mechanical testing to verify ultimate tensile strength, fracture elongation, loading plateau stress, and permanent set characteristics. Thermal analysis confirms transformation temperatures and ensures consistent phase transformation behavior. Chemical analysis verifies composition control and impurity limits, while microstructural examination ensures proper grain structure and phase distribution throughout the material.

Conclusion

Nitinol tubes represent a transformative technology for high-temperature applications, combining unique shape memory properties with exceptional thermal stability and corrosion resistance across demanding industrial environments.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

As a leading China nitinol tubes manufacturer with over 10 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy production, Baoji Hanz Metal Material Co., Ltd. offers direct supply advantages and cost-effective solutions. Our comprehensive manufacturing capabilities include sophisticated production equipment, advanced R&D facilities, and rigorous quality control systems meeting ISO9001, SGS, and TUV standards. With fast delivery from extensive stock of standard sizes and custom OEM services for specific requirements, we provide high quality nitinol tubes for sale at competitive nitinol tubes price points. Our professional customer service team offers pre-sale technical consultation, order tracking, and comprehensive after-sales support. Contact us at baojihanz-niti@hanztech.cn for your China nitinol tubes supplier needs and experience the difference of working with a trusted China nitinol tubes factory offering nitinol tubes wholesale solutions.

FAQ

Q: What temperature range can nitinol tubes operate in effectively?

A: Nitinol tubes can operate from cryogenic temperatures up to approximately 400-500°C, with optimal superelastic performance typically occurring between -40°C and 100°C.

Q: How do nitinol tubes maintain their shape memory properties at high temperatures?

A: The shape memory effect relies on martensitic phase transformation, which remains stable up to the material's recrystallization temperature, typically around 400-500°C.

Q: What makes nitinol tubes superior to conventional materials in thermal cycling applications?

A: Nitinol tubes exhibit exceptional fatigue resistance and can undergo millions of thermal cycles without degradation due to their unique phase transformation mechanism.

Q: Can nitinol tubes be customized for specific high-temperature applications?

A: Yes, transformation temperatures, dimensions, and surface treatments can be tailored through controlled heat treatment and manufacturing processes to meet specific application requirements.

References

1. Duerig, T., Pelton, A., & Stöckel, D. "An Overview of Nitinol Medical Applications." Materials Science and Engineering A, Vol. 273-275.

2. Morgan, N.B. "Medical Shape Memory Alloy Applications - The Market and Its Products." Materials Science and Engineering A, Vol. 378.

3. Otsuka, K., & Wayman, C.M. "Shape Memory Materials." Cambridge University Press, Materials Science Series.

4. Pelton, A.R., Russell, S.M., & DiCello, J. "The Physical Metallurgy of Nitinol for Medical Applications." JOM Journal of the Minerals, Metals and Materials Society.
