What is shape memory Nitinol wire rope?

Understanding Shape Memory Nitinol Wire Rope

The Composition of Nitinol

Nitinol, the foundation of shape memory wire rope, is an extraordinary alloy composed primarily of nickel and titanium. This unique combination of elements gives Nitinol its remarkable properties, including shape memory and superelasticity. The precise ratio of nickel to titanium can be adjusted to fine-tune the alloy's characteristics, allowing manufacturers to tailor the material for specific applications. The crystal structure of Nitinol undergoes a reversible phase transformation when subjected to temperature changes or mechanical stress, enabling its shape memory behavior.

The Wire Rope Configuration

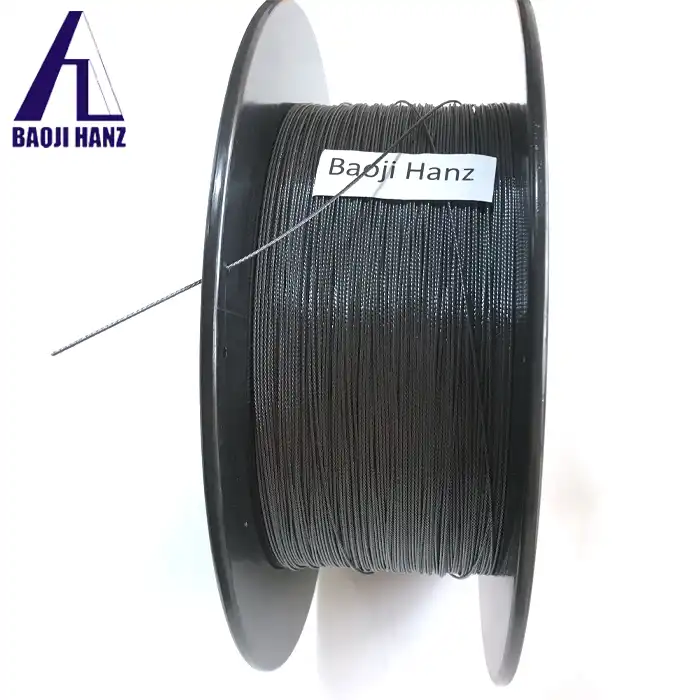

Shape memory Nitinol wire rope takes the exceptional properties of Nitinol and incorporates them into a wire rope structure. Wire rope typically consists of multiple strands of wire twisted or braided together to form a strong, flexible, and durable cable. In the case of it, the individual wires are made from Nitinol alloy, combining the strength and versatility of wire rope with the unique characteristics of Nitinol. This configuration allows for the creation of complex shapes and structures that can be programmed to remember and return to their original form.

The Shape Memory Effect

The shape memory effect is the defining feature of Nitinol wire rope. This phenomenon allows the material to be deformed at lower temperatures and then return to its pre-programmed shape when heated above its transformation temperature. The shape memory effect occurs due to the reversible phase transformation between the material's austenite and martensite crystal structures. This remarkable ability enables it to be used in applications where controlled, repeatable shape changes are required, such as in actuators, sensors, and medical devices.

Manufacturing Process of Shape Memory Nitinol Wire Rope

Alloy Production

The manufacturing process of it begins with the production of the Nitinol alloy itself. This involves carefully melting and combining high-purity nickel and titanium in precise ratios. The molten alloy is then cast into ingots or billets, which serve as the raw material for further processing. Advanced techniques such as vacuum induction melting and vacuum arc remelting are often employed to ensure the highest level of purity and homogeneity in the alloy composition. This initial stage is crucial in determining the final properties of the shape memory Nitinol wire rope.

Wire Drawing

Once the Nitinol alloy has been produced, it undergoes a series of wire drawing processes to create the individual wires that will form the rope. Wire drawing involves pulling the metal through a series of progressively smaller dies to reduce its diameter and increase its length. This process not only shapes the wire but also imparts specific mechanical properties. For shape memory Nitinol wire, careful control of temperature and drawing speed is essential to maintain the alloy's unique characteristics. Multiple intermediate annealing steps may be required to relieve internal stresses and ensure optimal performance of the final product.

Rope Construction

The final stage in manufacturing it involves assembling the individual wires into the rope structure. This process can vary depending on the desired properties and applications of the finished product. Common configurations include twisted strand ropes, where multiple wires are twisted together to form strands, which are then twisted around a central core. Alternatively, braided ropes may be created by interweaving the Nitinol wires in a complex pattern. The specific construction method chosen affects the rope's strength, flexibility, and shape memory behavior. After construction, the rope may undergo additional heat treatments or shape-setting procedures to program its memory effect for specific applications.

Applications of Shape Memory Nitinol Wire Rope

Aerospace and Aviation

Shape memory Nitinol wire rope finds numerous applications in the aerospace and aviation industries due to its unique properties and reliability under extreme conditions. In aircraft design, it can be used for adaptive wings that change shape during flight to optimize aerodynamics and fuel efficiency. The material's ability to withstand high stress and recover its original shape makes it ideal for vibration damping systems in helicopters and other aircraft. Additionally, shape memory Nitinol wire rope can be employed in deployable structures for satellites and space vehicles, allowing for compact storage during launch and controlled expansion once in orbit.

Medical Devices and Implants

The biocompatibility and superelastic properties of Nitinol make shape memory wire rope an excellent choice for various medical applications. In minimally invasive surgeries, Nitinol wire rope can be used to create guidewires and catheters that navigate through complex anatomical structures with minimal trauma to surrounding tissues. Orthodontic archwires made from Nitinol provide consistent, gentle forces for tooth alignment. In the field of cardiovascular medicine,it is used in the construction of stents, which can be compressed for insertion into blood vessels and then expand to their programmed shape once in place, helping to maintain vessel patency.

Robotics and Actuators

The shape memory effect of Nitinol wire rope makes it an attractive option for creating compact and efficient actuators in robotics and automation systems. These actuators can be designed to produce linear or rotary motion in response to temperature changes or electrical stimulation. The high power-to-weight ratio of it actuators makes them particularly suitable for applications where space and weight are critical factors, such as in robotic prosthetics or miniature robotic systems. Additionally, the material's ability to flex and bend without fatigue allows for the creation of soft robotic structures that can interact safely with humans and delicate objects.

Conclusion

Shape memory Nitinol wire rope represents a remarkable fusion of advanced materials science and engineering ingenuity. Its unique properties, including shape memory and superelasticity, open up a world of possibilities across various industries. From aerospace applications to medical devices and robotics, this innovative material continues to push the boundaries of what's possible in design and functionality. As research and development in this field progress, we can expect to see even more exciting applications and advancements in the future of shape memory Nitinol wire rope technology. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
