What is super elastic nitinol?

Understanding Super Elastic Nitinol

Composition and Structure

Superelastic nitinol is a nickel-titanium alloy characterized by a near-equiatomic composition, which gives it its distinctive properties. The precise ratio of nickel to titanium can be adjusted to fine-tune the material's mechanical and thermal characteristics, allowing for customization based on specific application requirements. At the atomic level, nitinol possesses a unique crystal structure that underlies its remarkable behavior and functionality. The alloy transitions between two solid phases: austenite, which is the high-temperature phase, and martensite, which is the low-temperature phase. This phase transformation is the key to nitinol's superelasticity and its shape memory effect, enabling it to recover its original shape after deformation and respond to changes in temperature and stress. This versatility makes nitinol an attractive choice for various engineering applications.

Superelasticity Explained

The superelastic behavior of nitinol is truly extraordinary and stands out among materials used in engineering. When stress is applied to the material, it undergoes a reversible phase transformation from austenite, its high-temperature phase, to martensite, the low-temperature phase. This remarkable transformation allows the material to accommodate large strains without experiencing permanent deformation, which is a significant advantage in various applications. Upon removal of the stress, the material reverts to its original austenitic structure and shape, demonstrating its ability to recover effectively. This unique property enables nitinol to recover from strains that can be up to 10 times greater than those of conventional metals, making it particularly valuable in fields such as robotics, medical devices, and aerospace engineering, where resilience and adaptability are crucial.

Shape Memory Effect

In addition to its remarkable superelasticity, nitinol also exhibits a fascinating property known as the shape memory effect. This phenomenon enables the material to "remember" a predetermined shape and return to it when heated above its specific transformation temperature. The ability to recover its original configuration upon heating is particularly useful in a variety of applications where controlled actuation or deployment is required. For instance, in the medical field, nitinol is commonly used in stents, which expand to support blood vessels upon insertion and heating. Similarly, in aerospace components, this property allows for reliable performance in environments where precise shape changes are necessary. The versatility and reliability of the shape memory effect make nitinol an invaluable material in both medical and engineering applications, enhancing functionality and safety.

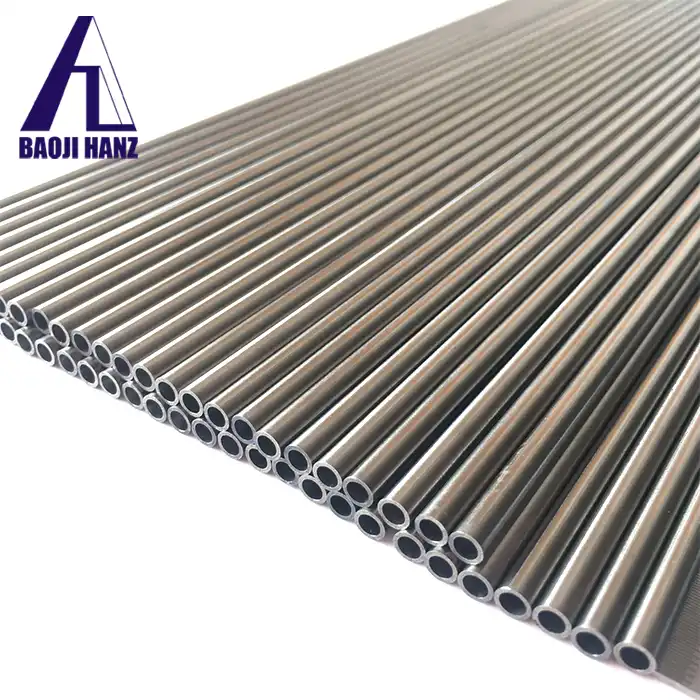

Manufacturing Super Elastic Nitinol Pipes

Melting and Casting

The production of super elastic nitinol pipes begins with the precise melting and alloying of nickel and titanium. Vacuum induction melting is often employed to ensure high purity and homogeneity. The molten alloy is then cast into ingots or billets, which serve as the starting material for subsequent processing steps. Careful control of the composition and cooling rates during this stage is crucial for achieving the desired properties in the final product.

Hot Working and Cold Drawing

The cast nitinol undergoes a series of hot working processes, such as forging or extrusion, to break down the as-cast structure and improve its mechanical properties. Following hot working, the material is subjected to cold drawing operations to reduce its diameter and achieve the desired pipe dimensions. Multiple drawing passes, interspersed with intermediate annealing treatments, are typically required to produce high-quality super elastic nitinol pipes.

Heat Treatment and Surface Finishing

Heat treatment is a critical step in the manufacturing of super elastic nitinol pipes. Precise control of temperature and duration during heat treatment allows for the optimization of the material's superelastic properties. The pipes may undergo solution annealing, shape-setting, and aging treatments to tailor their performance characteristics. Finally, surface finishing operations, such as electropolishing or passivation, are performed to enhance corrosion resistance and biocompatibility, particularly for medical applications.

Applications of Super Elastic Nitinol Pipes

Medical Devices

Super elastic nitinol pipes have found extensive use in the medical field, particularly in the production of minimally invasive devices. Cardiovascular stents, guidewires, and catheters benefit from nitinol's superelasticity and kink resistance. The material's biocompatibility and ability to conform to complex anatomical structures make it ideal for these applications. Nitinol pipes are also utilized in orthodontic archwires, where their constant force delivery and shape memory properties enable more efficient tooth movement.

Aerospace and Aviation

The aerospace industry has embraced super elastic nitinol pipes for various applications. Their high fatigue resistance and ability to dampen vibrations make them suitable for hydraulic and pneumatic systems in aircraft. Nitinol pipes are also used in shape-morphing structures, such as adaptive wing surfaces, leveraging the material's shape memory effect to achieve controlled deformation. The lightweight nature of nitinol contributes to fuel efficiency and overall performance in aerospace applications.

Industrial and Consumer Products

Beyond medical and aerospace applications, super elastic nitinol pipes have found their way into numerous industrial and consumer products. They are used in robotic actuators, where their large strain recovery enables compact and efficient designs. In the automotive industry, nitinol pipes are employed in adaptive damping systems and self-repairing components. Consumer products such as eyeglass frames and cellular phone antennas also benefit from the durability and flexibility of nitinol pipes.

Conclusion

Super elastic nitinol is a remarkable material that continues to push the boundaries of what's possible in various industries. Its unique combination of superelasticity, shape memory, and biocompatibility makes it an invaluable asset in medical, aerospace, and consumer applications. As research and development in this field progress, we can expect to see even more innovative uses for super elastic nitinol pipes in the future. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
