What is the Mechanism Behind the Shape Memory Effect in TiNi Alloys?

The shape memory effect in TiNi alloys represents one of the most fascinating phenomena in materials science, revolutionizing various industries with its unique capabilities. This remarkable property allows TiNi alloys, commonly known as Nitinol, to "remember" and return to their pre-programmed shapes when subjected to specific thermal or mechanical stimuli. The mechanism driving this behavior involves complex crystallographic transformations that occur at the atomic level, making Memory shape TiNi rope and similar products invaluable in applications ranging from medical devices to aerospace components.

The Fundamental Science of Shape Memory Effect

Martensitic Transformation as the Core Mechanism

The shape memory effect in TiNi alloys fundamentally relies on a solid-state phase transformation known as martensitic transformation. This diffusionless transformation occurs between two crystalline phases: austenite (the high-temperature phase) and martensite (the low-temperature phase). When a Memory shape TiNi rope is cooled from its austenitic state, it transforms into the martensitic phase without any macroscopic shape change if no external stress is applied. This transformation involves a coordinated movement of atoms that shift from a cubic crystal structure in austenite to a monoclinic structure in martensite. The unique aspect of this transformation in TiNi alloys is that it's reversible and occurs within a specific temperature range that can be precisely engineered during the manufacturing process. Baoji Hanz Metal Material Co., Ltd. has mastered this process through their advanced production techniques, allowing them to create Memory shape TiNi rope with transformation temperatures tailored to specific application requirements, ranging from sub-zero temperatures to over 100°C depending on the exact composition and processing history of the alloy.

Twinning and Detwinning Processes

When TiNi alloys cool into the martensitic phase, they form a twinned structure – a self-accommodating arrangement where different variants of martensite form to minimize the overall strain energy. This twinned martensite can be easily deformed through a process called detwinning, where one variant grows at the expense of others under applied stress. Memory shape TiNi rope exhibits this property exceptionally well, allowing it to be deformed up to 7-8% strain without permanent damage. Instead of conventional plastic deformation seen in ordinary metals, the applied stress causes a reorientation of the martensitic variants, resulting in a macroscopic shape change while maintaining the atomic bonds intact. This unique deformation mechanism contributes to the superelasticity of TiNi products, making Memory shape TiNi rope with sizes ranging from 0.3~0.7mm particularly valuable in applications requiring both flexibility and strength. The rope's ability to undergo this detwinning process repeatedly without fatigue is one of the key factors that gives it a strength rating of 1450 and makes it suitable for demanding applications across various industries.

Temperature-Induced Recovery

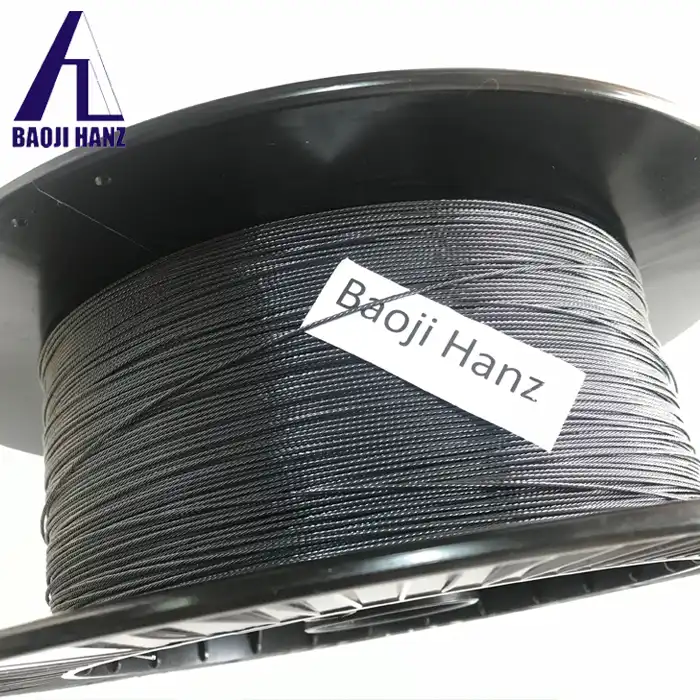

The most dramatic aspect of the shape memory effect occurs during the heating phase. When deformed martensite is heated above its transformation temperature, it reverts to the austenite phase, which can only exist in the original, undeformed crystal configuration. This phase reversion forces the material to recover its pre-programmed shape with remarkable precision. For Memory shape TiNi rope, this temperature-induced recovery can generate significant recovery stresses (up to 800 MPa) and recovery strains (up to 8%), making it capable of performing mechanical work during shape recovery. The processing technique used by Baoji Hanz, involving hot rolling-drawing-annealing-twisting, creates a Memory shape TiNi rope with optimized transformation characteristics. Their manufacturing process ensures that the material maintains its shape memory properties even after thousands of transformation cycles, a critical feature for applications requiring long-term reliability. Additionally, the transformation temperature can be precisely controlled through composition adjustments and thermomechanical treatments, allowing Baoji Hanz to offer customized solutions that activate at specific temperatures required by different industrial applications.

Microstructural Factors Affecting Shape Memory Properties

Crystal Structure and Lattice Parameters

The atomic arrangement within TiNi alloys directly influences their shape memory performance. The austenite phase exhibits a B2 cubic structure, while the martensite phase has a B19' monoclinic structure. The compatibility between these two crystal structures at their interface plays a crucial role in determining the reversibility of the transformation and the quality of the shape memory effect. Memory shape TiNi rope benefits from precise control of these microstructural parameters during manufacturing. The material's composition must be carefully balanced, typically near-equiatomic (approximately 50% titanium and 50% nickel by atomic percentage), with minor adjustments that can dramatically alter the transformation temperatures and mechanical properties. Baoji Hanz Metal Material Co., Ltd. employs sophisticated production equipment to achieve this precise compositional control, resulting in Memory shape TiNi rope that conforms to strict standards such as GB24627-2009 and ASTMF2063. This attention to crystallographic detail ensures that their products exhibit consistent shape memory behavior across different production batches, providing reliable performance in critical applications like medical devices or aerospace components where failure is not an option.

Role of Precipitates and Grain Boundaries

The presence of precipitates and the characteristics of grain boundaries significantly impact the shape memory properties of TiNi alloys. Ti-rich precipitates (Ti₂Ni) or Ni-rich precipitates (Ti₃Ni₄, TiNi₃) can form depending on the exact composition and heat treatment of the alloy. These precipitates affect the transformation temperatures and the hysteresis of the martensitic transformation. In Memory shape TiNi rope, the distribution and size of these precipitates are carefully controlled through specific annealing processes. The grain size and grain boundary characteristics also influence the macroscopic behavior of the material. Finer grain structures typically result in better fatigue resistance and more stable transformation properties. Baoji Hanz's processing services, including specialized heat treatments, welding, and mechanical working, are designed to optimize these microstructural features. Their Memory shape TiNi rope undergoes precise thermomechanical processing to achieve the ideal balance of precipitates and grain structure, resulting in products that exhibit superb shape memory effect with minimal degradation over repeated transformation cycles. This microstructural optimization contributes to the rope's exceptional durability and ability to maintain its unique properties even when subjected to decoiling, cutting, and other processing operations that might compromise the performance of lesser materials.

Thermomechanical Processing Effects

The shape memory properties of TiNi alloys can be significantly enhanced through appropriate thermomechanical processing. Cold-working followed by annealing introduces dislocations and modifies the precipitate structure, which can be used to tailor the transformation behavior. Memory shape TiNi rope undergoes a sophisticated processing regime that includes hot rolling, drawing, annealing, and twisting to achieve optimal performance characteristics. This processing history determines critical parameters such as the transformation temperature range, hysteresis width, recoverable strain limit, and generation of recovery stress. Baoji Hanz Metal Material Co., Ltd. leverages their advanced production capabilities to implement precise thermomechanical treatments that enhance the functional properties of their Memory shape TiNi rope. The company's expertise in this area allows them to offer products with customized transformation behaviors suited for specific applications. For instance, their fishing-grade Memory shape TiNi rope combines excellent corrosion resistance with precisely tuned superelasticity, making it ideal for marine environments. The surface finish, whether black or bright, is also carefully controlled during processing to ensure uniform properties throughout the material while maintaining excellent resistance to environmental degradation. This combination of optimized internal microstructure and protected external surface results in a Memory shape TiNi rope that delivers consistent performance even in challenging operational conditions.

Applications Leveraging Shape Memory Mechanisms

Biomedical Applications and Working Principles

The biocompatibility of TiNi alloys combined with their shape memory and superelastic properties has revolutionized the medical device industry. Memory shape TiNi rope and derived products are extensively used in stents, guidewires, orthodontic archwires, and surgical instruments. In these applications, the martensitic transformation mechanism enables devices that can be compressed for minimally invasive delivery and then expand to a predetermined shape once inside the body. The superelasticity of TiNi alloys, which stems from stress-induced martensitic transformation, provides a constant force over a large displacement range, making it ideal for orthodontic applications. Additionally, the biocompatibility of properly processed TiNi materials makes Memory shape TiNi rope suitable for long-term implantation. Baoji Hanz Metal Material Co., Ltd. produces medical-grade Memory shape TiNi rope that meets stringent international standards like ASTMF2063, ensuring consistent performance in critical biomedical applications. Their material undergoes rigorous testing for transformation temperatures, mechanical properties, and surface composition to guarantee that the shape memory mechanism functions reliably within the human body. The ability to custom-engineer the transformation temperature is particularly valuable for biomedical applications, as it allows devices to activate at body temperature (37°C) or in response to controlled external heating, providing doctors with precise control over implanted devices.

Aerospace and Automotive Engineering Applications

The unique combination of lightweight, high strength, and functional properties makes Memory shape TiNi rope an excellent candidate for aerospace and automotive applications. In these industries, the material's ability to function as both a sensor and an actuator through its shape memory mechanism enables innovative solutions for complex engineering challenges. Memory shape TiNi rope is used in vibration damping systems, thermally activated fasteners, and adaptive structures that can change shape in response to environmental conditions. The material's excellent fatigue resistance, even after thousands of transformation cycles, ensures long-term reliability in critical systems. Baoji Hanz Metal Material Co., Ltd. supplies Memory shape TiNi rope with precise specifications for aerospace and automotive applications, where the material's superelasticity and shape memory effect are leveraged to create components that can adapt to changing operational requirements. For instance, in aircraft, TiNi-based actuators can adjust airfoil shapes to optimize performance at different flight conditions. In automotive applications, the material's superelasticity makes it valuable for impact absorption systems. The company's ability to provide Memory shape TiNi rope in various configurations, with processing services including bending and welding, allows engineers to implement complex designs that fully exploit the unique martensitic transformation mechanism of these remarkable alloys while minimizing weight and maximizing functionality.

Consumer and Industrial Product Applications

Beyond medical and transportation applications, Memory shape TiNi rope finds use in a wide range of consumer and industrial products where its unique properties offer significant advantages. The martensitic transformation mechanism enabling the shape memory effect is utilized in applications ranging from eyeglass frames and mobile phone antennas to pipe couplings and thermal actuators. In consumer products, the superelasticity of Memory shape TiNi rope provides exceptional durability and comfort, while in industrial applications, its ability to generate high recovery stresses during shape recovery enables compact, reliable actuators. Fishing equipment represents another significant application area, where the material's combination of corrosion resistance, strength, and elasticity makes it ideal for specialized fishing lines and leaders. Baoji Hanz Metal Material Co., Ltd.'s Memory shape TiNi rope, available in sizes from 0.3~0.7mm with a 1*7 construction (and custom specifications), delivers exceptional performance in these diverse applications. The company's OEM services allow customers to specify exact requirements for transformation temperatures, surface finish, and mechanical properties, ensuring that the martensitic transformation mechanism is optimized for each specific use case. Their minimum order quantity of just 1kg makes the technology accessible even for specialized applications or product development, allowing more industries to benefit from the unique properties that emerge from the fundamental martensitic transformation mechanism of TiNi alloys.

Conclusion

The shape memory effect in TiNi alloys results from a reversible martensitic transformation, enabling materials like Memory shape TiNi rope to "remember" and return to predetermined shapes. This remarkable mechanism, involving phase changes between austenite and martensite, creates materials with extraordinary superelasticity and shape recovery capabilities that continue to revolutionize industries from medicine to aerospace.

With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. offers unparalleled quality and customization capabilities. Are you looking to enhance your products with the remarkable properties of Memory shape TiNi rope? Contact us today to discover how our direct supply chain can save you money while ensuring fast delivery from our large stock of standard sizes. Our expert team is ready to provide tailored solutions for your specific application needs. Reach out at baojihanz-niti@hanztech.cn to begin transforming your next project with our cutting-edge materials.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (2002). Shape Memory Materials. Cambridge University Press.

2. Duerig, T. W., Melton, K. N., Stockel, D., & Wayman, C. M. (1990). Engineering Aspects of Shape Memory Alloys. Butterworth-Heinemann.

3. Sun, L., & Huang, W. M. (2010). Nature of the multistage transformation in shape memory alloys upon heating. Metal Science and Heat Treatment, 52(3), 113-120.

4. Lagoudas, D. C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer.

5. Miyazaki, S., Fu, Y. Q., & Huang, W. M. (2009). Thin Film Shape Memory Alloys: Fundamentals and Device Applications. Cambridge University Press.

6. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.
