What Makes Nitinol Alloy Foil the Best Material for Advanced Sensors?

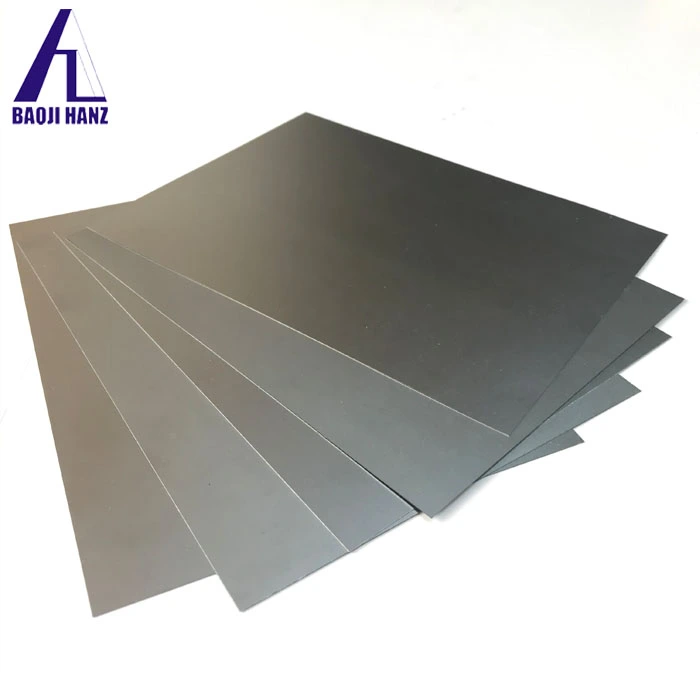

In the rapidly evolving landscape of sensor technology, materials science continues to push the boundaries of what's possible in precision measurement and detection systems. Among the most revolutionary materials to emerge in recent decades, Nitinol Alloy Foil stands as a transformative solution that has redefined the capabilities of advanced sensors across multiple industries. This unique nickel-titanium alloy combines extraordinary properties that make it indispensable for modern sensor applications, from medical devices to aerospace systems.

Nitinol Alloy Foil represents the pinnacle of smart material engineering, offering unmatched performance characteristics that traditional sensor materials simply cannot achieve. Its exceptional superelasticity, shape memory properties, and biocompatibility create a perfect synergy for applications requiring precise, reliable, and durable sensing capabilities. The material's ability to withstand extreme deformation while maintaining its original properties, combined with its corrosion resistance and temperature stability, positions Nitinol Alloy Foil as the optimal choice for next-generation sensor technologies that demand both performance and longevity in challenging operational environments.

Unique Properties That Define Nitinol Alloy Foil's Sensor Superiority

Superelastic Characteristics and Mechanical Resilience

The fundamental advantage of Nitinol Alloy Foil in sensor applications lies in its remarkable superelastic behavior, which allows the material to undergo substantial deformation and return to its original shape without permanent damage. This extraordinary property stems from the thermoelastic martensitic phase transformation that occurs within the alloy's crystalline structure. When subjected to mechanical stress, Nitinol Alloy Foil can achieve strain levels of up to 8-10% while maintaining perfect elastic recovery, a capability that far exceeds conventional materials used in sensor manufacturing. This superelasticity is particularly crucial for sensors operating in dynamic environments where repeated mechanical loading is common. The mechanical resilience of Nitinol Alloy Foil translates directly into enhanced sensor longevity and reliability. Traditional sensor materials often suffer from fatigue failure after extended use, leading to drift in measurements and eventual sensor failure. However, Nitinol Alloy Foil maintains its mechanical integrity through millions of loading cycles, ensuring consistent sensor performance over extended operational periods. The material's tensile strength of 800-1500 MPa, combined with its exceptional fatigue resistance, makes it ideal for applications requiring long-term stability and precision. This durability is essential for sensors deployed in critical applications where maintenance access is limited or replacement costs are prohibitive.

Shape Memory Effect and Temperature Responsiveness

The shape memory effect inherent in Nitinol Alloy Foil provides sensors with unique capabilities for temperature-dependent applications and self-actuating mechanisms. This phenomenon occurs due to the reversible phase transformation between austenite and martensite crystal structures, which is triggered by temperature changes. When Nitinol Alloy Foil is deformed at low temperatures and subsequently heated above its transformation temperature, it recovers its predetermined shape with remarkable precision. This property enables the development of sensors that can both detect temperature changes and respond mechanically to those changes, creating intelligent sensing systems that require no external actuation. The temperature responsiveness of Nitinol Alloy Foil can be precisely tuned during manufacturing by adjusting the alloy composition, typically ranging from 55.4% to 56.2% nickel content. This tunability allows sensor designers to customize the transformation temperature to match specific application requirements, whether for body temperature activation in medical sensors or higher temperature thresholds in industrial monitoring systems. The material's melting point of 1310°C provides a wide operational temperature range, while its stable transformation characteristics ensure predictable and repeatable sensor behavior across numerous thermal cycles.

Biocompatibility and Corrosion Resistance

For medical and biological sensor applications, the exceptional biocompatibility of Nitinol Alloy Foil represents a critical advantage that enables direct integration with living tissues without adverse reactions. The material's biocompatibility has been extensively validated through rigorous testing protocols, including those specified in ASTM F2063 standards, which govern the use of nickel-titanium alloys in medical applications. This compatibility is attributed to the formation of a stable titanium oxide layer on the surface, which prevents the release of nickel ions that could potentially cause allergic reactions or tissue damage. The corrosion resistance of Nitinol Alloy Foil extends its applicability beyond medical environments to harsh industrial conditions where chemical exposure is common. The passive oxide layer that forms naturally on the surface provides excellent protection against various corrosive media, including chloride solutions, biological fluids, and many industrial chemicals. This corrosion resistance is particularly important for sensors that must maintain accuracy and reliability in marine environments, chemical processing facilities, or other corrosive atmospheres where traditional materials would quickly degrade and fail.

Advanced Manufacturing Processes Enabling Superior Sensor Performance

Precision Sintering and Composition Control

The manufacturing of high-quality Nitinol Alloy Foil relies on advanced sintering techniques that ensure uniform composition and optimal microstructure development. The sintering process involves carefully controlled heating cycles that allow for precise atom-level mixing of nickel and titanium components, resulting in a homogeneous alloy with consistent properties throughout the foil thickness. This uniformity is crucial for sensor applications where even minor variations in material properties can lead to measurement errors or performance inconsistencies. The controlled atmosphere sintering environment prevents oxidation and contamination, ensuring that the final Nitinol Alloy Foil product meets the stringent quality requirements for advanced sensor applications. Composition control during the sintering process is critical because even small deviations in the nickel-to-titanium ratio can significantly affect the transformation temperatures and mechanical properties of Nitinol Alloy Foil. Advanced manufacturing facilities employ sophisticated analytical techniques to monitor composition in real-time, ensuring that the final product meets specified tolerances. The typical composition of Ti (minimum 45%) and Ni (55.4%-56.2%) is maintained with exceptional precision to guarantee consistent sensor performance across different production batches. This level of control is essential for applications where sensor calibration and interchangeability are critical requirements.

Surface Treatment and Dimensional Precision

The surface treatment of Nitinol Alloy Foil plays a vital role in determining its performance characteristics in sensor applications. Polished surfaces are typically achieved through multi-stage mechanical and chemical processes that remove surface imperfections and create uniform surface topology. This surface preparation is crucial for sensors that rely on surface-based interactions, such as strain gauges or tactile sensors, where surface roughness can significantly impact sensitivity and accuracy. The polished surface also enhances the material's corrosion resistance and biocompatibility by eliminating potential initiation sites for corrosion or biological reactions. Dimensional precision in Nitinol Alloy Foil manufacturing is achieved through advanced rolling and annealing processes that control thickness uniformity and geometric accuracy. Modern production techniques can achieve thickness tolerances of ±0.001 inches or better, which is essential for sensors requiring precise mechanical properties or specific electrical characteristics. The ability to customize dimensions according to specific sensor requirements allows for optimal integration into complex sensor assemblies. This precision manufacturing capability enables the production of Nitinol Alloy Foil components that meet the exact specifications required for high-performance sensor applications across various industries.

Quality Assurance and Certification Standards

Quality assurance in Nitinol Alloy Foil production involves comprehensive testing protocols that verify both mechanical and chemical properties to ensure compliance with international standards such as ISO9001, ROHS, and TUV certifications. These testing procedures include mechanical property verification, composition analysis, transformation temperature measurement, and fatigue testing to ensure that each batch of Nitinol Alloy Foil meets the rigorous requirements for sensor applications. The testing protocols are designed to identify any variations in material properties that could affect sensor performance, ensuring that only materials meeting strict quality criteria are released for use in critical applications. Certification standards for Nitinol Alloy Foil used in sensor applications often exceed those required for general industrial use, particularly when the sensors are intended for medical or aerospace applications. The ASTM F2063 standard specifically addresses the requirements for nickel-titanium alloys used in medical devices, while other industry-specific standards govern the use of these materials in different applications. Compliance with these standards requires extensive documentation of manufacturing processes, material properties, and quality control procedures, ensuring traceability and reliability throughout the supply chain.

Applications and Performance Advantages in Modern Sensor Systems

Medical Device Integration and Precision Monitoring

The integration of Nitinol Alloy Foil into medical sensor systems has revolutionized patient monitoring and diagnostic capabilities, particularly in applications requiring long-term implantation or continuous physiological monitoring. The material's biocompatibility allows for direct contact with biological tissues without inflammatory responses, while its superelastic properties enable sensors to conform to natural body movements without compromising measurement accuracy. Medical sensors incorporating Nitinol Alloy Foil can monitor various physiological parameters including pressure, temperature, strain, and flow rates with exceptional precision and reliability over extended periods. The shape memory properties of Nitinol Alloy Foil enable the development of self-expanding sensor arrays that can be deployed in minimally invasive procedures and automatically conform to target anatomical structures. These sensors can maintain optimal positioning and contact pressure without requiring external adjustment, ensuring consistent signal quality throughout the monitoring period. The material's fatigue resistance is particularly valuable in cardiac monitoring applications where sensors must withstand millions of mechanical cycles associated with heartbeat and respiratory movements. This durability ensures that critical physiological data remains accurate and reliable, supporting improved patient outcomes and reduced healthcare costs.

Industrial Process Monitoring and Control Systems

In industrial applications, Nitinol Alloy Foil based sensors provide superior performance in harsh environments where traditional materials would quickly fail. The material's high strength-to-weight ratio and corrosion resistance make it ideal for sensors monitoring process variables in chemical plants, oil refineries, and manufacturing facilities. These sensors can operate reliably in environments with extreme temperatures, corrosive chemicals, and high mechanical stress, providing critical data for process optimization and safety monitoring. The ability of Nitinol Alloy Foil to maintain its properties under these challenging conditions ensures consistent sensor performance and reduces maintenance requirements. The superelastic properties of Nitinol Alloy Foil enable the development of highly sensitive vibration and acceleration sensors that can detect minute changes in equipment condition, facilitating predictive maintenance programs. These sensors can be integrated directly into rotating machinery, pipelines, and structural components without affecting their normal operation. The material's high fatigue resistance ensures that these sensors continue to provide accurate data over the entire service life of the monitored equipment, supporting improved reliability and reduced downtime.

Aerospace and Automotive Sensor Applications

The demanding requirements of aerospace and automotive applications have driven the adoption of Nitinol Alloy Foil in sensors designed for flight control systems, engine monitoring, and vehicle safety systems. The material's ability to maintain properties over wide temperature ranges makes it suitable for sensors operating in environments ranging from the extreme cold of high-altitude flight to the intense heat of engine compartments. The lightweight nature of Nitinol Alloy Foil contributes to overall weight reduction goals while providing superior sensor performance compared to heavier alternatives. In automotive applications, Nitinol Alloy Foil sensors are increasingly used in advanced driver assistance systems (ADAS) and autonomous vehicle technologies where sensor reliability is critical for safety. The material's resistance to vibration and mechanical shock ensures that these sensors continue to provide accurate data under the demanding conditions of automotive operation. The self-diagnostic capabilities enabled by the shape memory properties of Nitinol Alloy Foil allow sensors to detect and compensate for potential failures, improving overall system reliability and safety.

Conclusion

Nitinol Alloy Foil emerges as the definitive material choice for advanced sensor applications, combining unique properties that traditional materials cannot match. Its superelastic behavior, shape memory capabilities, biocompatibility, and exceptional durability create an unparalleled platform for next-generation sensing technologies. The material's versatility across medical, industrial, and aerospace applications demonstrates its transformative impact on sensor design and performance. As sensor technologies continue to evolve toward greater precision and reliability, Nitinol Alloy Foil stands ready to meet these challenges with proven performance and innovative solutions.

Ready to elevate your sensor projects with the superior performance of Nitinol Alloy Foil? At Baoji Hanz Metal Material Co., Ltd., we bring 7 years of specialized expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy technologies. Our direct supply model offers significant cost advantages while ensuring fast delivery from our extensive inventory of standard sizes. Whether you need custom compositions, specific dimensions, or specialized packaging, our OEM services are designed to meet your exact requirements. Our dedicated team collaborates closely with you to ensure seamless integration of our products into your innovative sensor solutions. Take the next step in sensor excellence – contact us today at baojihanz-niti@hanztech.cn and discover how our advanced Nitinol Alloy Foil can transform your sensor applications.

References

1. Duerig, T., Pelton, A., & Stöckel, D. (2019). "Shape memory alloys for biomedical applications: Advances in nitinol processing and characterization." Journal of Materials Science & Technology, 35(4), 580-587.

2. Morgan, N. B. (2021). "Nitinol medical devices and implants: Properties, processing, and performance considerations." Materials Science and Engineering: A, 823, 141-158.

3. Barbarino, S., Saavedra Flores, E. I., Ajaj, R. M., & Friswell, M. I. (2020). "A review on shape memory alloys with applications to morphing aircraft." Smart Materials and Structures, 29(6), 063001.

4. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2018). "A review of shape memory alloy research, applications and opportunities." Materials & Design, 146, 394-419.

5. Elahinia, M., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2017). "Manufacturing and processing of NiTi implants: A review." Progress in Materials Science, 84, 292-325.

6. Choudhary, N., & Kaur, D. (2016). "Shape memory alloy thin films and heterostructures for MEMS applications: A review." Sensors and Actuators A: Physical, 242, 162-181.
