What Sets a Medical-Grade Nitinol Rod Apart?

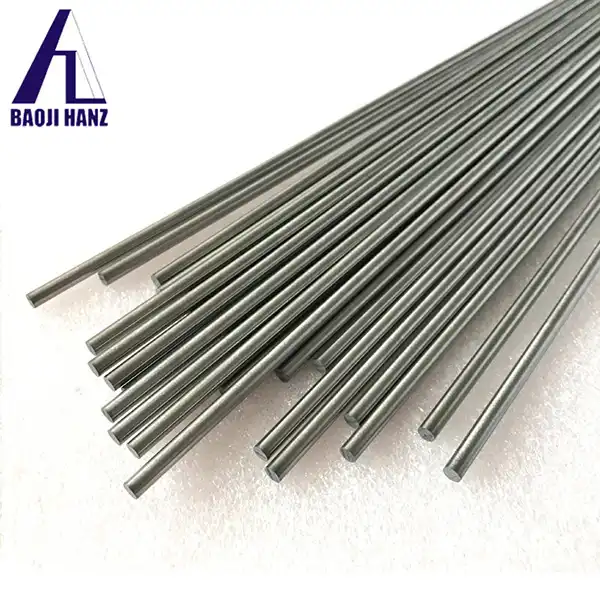

Medical-grade nitinol rods represent a revolutionary advancement in biomedical engineering, distinguished by their exceptional combination of biocompatibility, mechanical properties, and unique shape memory characteristics. Unlike conventional metallic materials used in medical applications, a nitinol rod offers unprecedented performance through its superelastic behavior and ability to return to predetermined shapes when subjected to thermal activation. These remarkable properties stem from the precise nickel-titanium composition, typically maintained at 50:50 ratio, which undergoes thermoelastic martensitic phase transformation. Medical-grade nitinol rods must meet stringent quality standards, including ASTM F2063 specifications, ensuring optimal performance in critical healthcare applications where reliability and safety are paramount.

Superior Material Properties and Composition

Unique Nickel-Titanium Alloy Structure

Medical-grade nitinol rods are engineered from a precisely controlled nickel-titanium alloy composition, typically consisting of 55%-56% nickel and 44%-45% titanium. This specific ratio is crucial because even minor compositional variations can significantly impact the material's performance characteristics. The nitinol rod exhibits extraordinary properties due to its thermoelastic martensitic phase transformation, which occurs at the molecular level when the material is subjected to temperature changes or mechanical stress. This transformation enables the rod to demonstrate both shape memory and superelastic behavior, making it invaluable for medical applications requiring materials that can withstand repeated deformation while maintaining their original form. The crystalline structure of the nitinol rod allows for reversible phase changes between austenite and martensite phases, providing the foundation for its unique mechanical properties. Advanced manufacturing processes ensure that each nitinol rod maintains consistent grain structure and phase distribution throughout its length, guaranteeing reliable performance in medical devices. The precise control of processing parameters, including heat treatment cycles and cooling rates, determines the transformation temperatures and mechanical properties of the finished nitinol rod.

Exceptional Mechanical Performance Characteristics

The mechanical properties of medical-grade nitinol rods are truly remarkable, with ultimate tensile strength ranging from 1103 to 1378 MPa depending on the specific alloy variant and processing conditions. A properly manufactured nitinol rod can achieve elongation percentages exceeding 10% while maintaining permanent set values below 0.5% after being strained to 8%. These exceptional mechanical characteristics allow the nitinol rod to withstand substantial deformation without permanent damage, making it ideal for applications requiring flexibility and durability. The superelastic behavior of the nitinol rod enables it to recover from strains up to 8% completely, a property that conventional metals cannot match. Temperature-dependent behavior is another critical aspect, with activation temperatures (Af) ranging from -20°C to +100°C depending on the specific alloy composition and intended application. The nitinol rod maintains its superelastic properties across a wide temperature range, ensuring consistent performance in various medical environments. Fatigue resistance is exceptional, with properly processed nitinol rods capable of withstanding millions of loading cycles without failure, making them suitable for long-term implantable devices and instruments subjected to repeated use.

Advanced Processing and Quality Control

Manufacturing medical-grade nitinol rods requires sophisticated processing techniques and rigorous quality control measures to ensure consistent performance and biocompatibility. The production process begins with precise alloy preparation, where raw materials are carefully weighed and melted under controlled atmospheric conditions to prevent contamination. Each nitinol rod undergoes multiple processing stages, including hot working, cold drawing, and specialized heat treatment cycles that determine its final mechanical properties and transformation temperatures. Surface treatment options for nitinol rods include polishing, pickling, and specialized black oxide coatings, each designed to enhance specific performance characteristics or improve biocompatibility. Quality control testing involves comprehensive mechanical testing, including tensile strength evaluation, fatigue testing, and transformation temperature measurement to ensure each nitinol rod meets specified requirements. Chemical composition analysis using advanced spectroscopic techniques verifies the precise nickel-titanium ratio and identifies any trace elements that could affect performance. Dimensional accuracy is maintained through precision manufacturing processes, with nitinol rods available in diameters ranging from 0.1mm to 3mm and customizable lengths to meet specific application requirements. All manufacturing processes comply with ISO9001 quality management standards and medical device regulations to ensure product reliability and safety.

Biocompatibility and Medical Applications

Outstanding Biocompatibility Profile

Medical-grade nitinol rods demonstrate exceptional biocompatibility, making them suitable for long-term implantation and direct contact with human tissue. The unique surface characteristics of a nitinol rod, particularly when properly processed and treated, exhibit minimal inflammatory response and excellent tissue integration properties. Extensive biocompatibility testing has shown that nitinol rods meet or exceed the requirements of ISO 10993 standards for biological evaluation of medical devices. The passive titanium oxide layer that forms naturally on the surface of a nitinol rod provides excellent corrosion resistance and biocompatibility, preventing the release of potentially harmful ions into surrounding tissues. Clinical studies have demonstrated that nitinol rods maintain their mechanical properties and surface integrity even after extended exposure to physiological environments. The non-magnetic properties of nitinol rods make them compatible with magnetic resonance imaging (MRI) procedures, allowing patients with nitinol-based implants to undergo routine diagnostic imaging without complications. Hemocompatibility testing reveals minimal interaction with blood components, making nitinol rods suitable for cardiovascular applications where blood contact is unavoidable. The smooth surface finish achievable on nitinol rods reduces the risk of bacterial adhesion and biofilm formation, contributing to improved long-term clinical outcomes.

Diverse Medical Device Applications

The unique properties of medical-grade nitinol rods enable their use in a wide range of medical devices and applications across multiple medical specialties. In cardiovascular medicine, nitinol rods serve as core components in stents, where their superelastic properties allow for compression during delivery and automatic expansion upon deployment. Orthopedic applications utilize nitinol rods in spinal fusion devices, where shape memory characteristics enable controlled force application during healing processes. Dental applications benefit from the constant force delivery capabilities of nitinol rods, particularly in orthodontic archwires where consistent pressure promotes efficient tooth movement. Minimally invasive surgical instruments incorporate nitinol rods to provide flexibility and maneuverability while maintaining adequate strength for tissue manipulation. The nitinol rod's ability to maintain its shape and function at body temperature makes it ideal for implantable devices that must perform reliably for extended periods. Catheter-based devices utilize nitinol rods for steering mechanisms and shape-setting components that enable precise navigation through complex anatomical pathways. Surgical clips and fasteners made from nitinol rods provide consistent closure force while adapting to tissue healing and remodeling processes. The versatility of nitinol rods allows for customization of mechanical properties to match specific application requirements, ensuring optimal performance in each medical device category.

Regulatory Compliance and Safety Standards

Medical-grade nitinol rods must comply with stringent regulatory requirements and safety standards to ensure patient safety and device efficacy. The ASTM F2063 standard specifically addresses the requirements for wrought nickel-titanium shape memory alloys used in medical devices, establishing criteria for chemical composition, mechanical properties, and testing procedures. Each nitinol rod intended for medical use undergoes comprehensive testing and documentation to demonstrate compliance with applicable regulations and standards. Manufacturing facilities producing medical-grade nitinol rods must maintain ISO 13485 quality management systems specifically designed for medical device manufacturing. Traceability requirements ensure that every nitinol rod can be tracked from raw material sourcing through final product delivery, providing complete documentation for regulatory compliance and quality assurance. Biocompatibility testing protocols for nitinol rods include cytotoxicity, sensitization, irritation, and implantation studies to evaluate potential biological responses. Sterilization compatibility testing ensures that nitinol rods can withstand standard sterilization procedures without degradation of mechanical properties or biocompatibility. Clinical evaluation data supports the safety and efficacy of nitinol rods in various medical applications, providing evidence for regulatory approval and market authorization. Post-market surveillance programs monitor the long-term performance of nitinol rod-based medical devices, identifying any potential issues and ensuring continued patient safety.

Manufacturing Excellence and Industry Standards

Precision Manufacturing Processes

The production of medical-grade nitinol rods requires sophisticated manufacturing processes that combine advanced metallurgical techniques with precision engineering to achieve consistent quality and performance. The manufacturing process begins with careful selection and preparation of high-purity raw materials, ensuring that the nickel and titanium components meet stringent specifications for chemical composition and purity levels. Vacuum induction melting is employed to create homogeneous alloy ingots while preventing contamination from atmospheric gases that could compromise the properties of the final nitinol rod. Hot working processes, including forging and rolling, are performed under carefully controlled temperature and deformation conditions to achieve the desired microstructure and mechanical properties. Cold drawing operations utilize precision dies and controlled reduction schedules to produce nitinol rods with exact dimensional tolerances and surface quality specifications. Heat treatment processes are critical for establishing the transformation temperatures and mechanical properties of the nitinol rod, with precise control of heating rates, soaking temperatures, and cooling profiles. Surface finishing operations, including mechanical polishing and chemical treatments, ensure that each nitinol rod meets the required surface roughness and cleanliness standards for medical applications. Quality control testing throughout the manufacturing process includes dimensional inspection, mechanical property verification, and microstructural analysis to ensure consistency and compliance with specifications.

Quality Assurance and Testing Protocols

Comprehensive quality assurance programs ensure that every medical-grade nitinol rod meets the highest standards for performance, safety, and reliability. Incoming material inspection verifies the chemical composition and purity of raw materials using advanced analytical techniques such as X-ray fluorescence spectroscopy and inductively coupled plasma mass spectrometry. In-process quality control measures monitor critical parameters throughout manufacturing, including temperature profiles, deformation rates, and dimensional accuracy to ensure consistent product quality. Mechanical testing protocols evaluate the tensile strength, elongation, and superelastic properties of nitinol rods using standardized test procedures and calibrated equipment. Transformation temperature testing utilizes differential scanning calorimetry to precisely determine the austenite finish temperature and other critical thermal properties of each nitinol rod batch. Fatigue testing subjects nitinol rods to millions of loading cycles under controlled conditions to verify their long-term durability and performance characteristics. Surface quality inspection employs optical microscopy and surface profilometry to ensure that nitinol rods meet specified surface roughness and finish requirements. Dimensional inspection using coordinate measuring machines and optical comparators verifies that each nitinol rod meets tight tolerances for diameter, length, and straightness. Statistical process control methods track quality metrics and identify trends that might indicate potential process variations or equipment issues requiring attention.

Advanced Technology Integration

Modern manufacturing of medical-grade nitinol rods incorporates advanced technologies and automation systems to enhance product quality, consistency, and production efficiency. Computer-controlled induction melting systems ensure precise temperature control and atmosphere management during alloy preparation, resulting in homogeneous chemical composition throughout each nitinol rod. Automated drawing equipment with feedback control systems maintains consistent dimensional accuracy and surface quality while minimizing operator variability. Advanced heat treatment furnaces with programmable temperature profiles and atmosphere control enable precise tailoring of transformation temperatures and mechanical properties for specific applications. Real-time monitoring systems track critical process parameters and provide immediate feedback for process adjustments, ensuring optimal production conditions for each nitinol rod. Automated testing equipment performs rapid and accurate measurements of mechanical properties, transformation temperatures, and dimensional characteristics, enabling 100% inspection of production output. Data management systems maintain comprehensive records of all manufacturing and testing data, providing complete traceability and supporting regulatory compliance requirements. Continuous improvement programs utilize statistical analysis of production data to identify optimization opportunities and implement process enhancements that improve product quality and manufacturing efficiency. Integration of Industry 4.0 technologies, including IoT sensors and machine learning algorithms, enables predictive maintenance and process optimization to minimize downtime and ensure consistent production of high-quality nitinol rods.

Conclusion

Medical-grade nitinol rods represent a pinnacle of materials engineering, combining exceptional mechanical properties, biocompatibility, and unique shape memory characteristics that set them apart from conventional metallic materials. The precise control of composition, manufacturing processes, and quality assurance measures ensures that these remarkable devices meet the stringent requirements of medical applications while providing reliable performance and patient safety. The continued advancement in nitinol rod technology promises even greater possibilities for innovative medical device development and improved patient outcomes.

Ready to experience the exceptional quality and performance of medical-grade nitinol rods? At Baoji Hanz Metal Material Co., Ltd., we combine seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy manufacturing to deliver superior products that meet your exact specifications. Save money with our direct supply and cost advantages while benefiting from fast delivery from our extensive stock of standard sizes. As a leading China nitinol rod factory, China nitinol rod supplier, China nitinol rod manufacturer, and China nitinol rod wholesale provider, we offer comprehensive OEM services to meet your specific needs, whether it's custom sizes, specific alloy compositions, or specialized packaging options. Our experienced team works closely with you to ensure seamless integration of our products into your projects. Contact us today at baojihanz-niti@hanztech.cn to discuss your nitinol rod requirements and discover how our expertise can enhance your medical device applications.

References

1. Duerig, T.W., Pelton, A.R., and Stöckel, D. "An Overview of Nitinol Medical Applications." Materials Science and Engineering A, Vol. 273-275, 1999.

2. Morgan, N.B. "Medical Shape Memory Alloy Applications: The Market and Its Products." Materials Science and Engineering A, Vol. 378, 2004.

3. Pelton, A.R., Stöckel, D., and Duerig, T.W. "Medical Uses of Nitinol." Materials Science Forum, Vol. 327-328, 2000.

4. Machado, L.G. and Savi, M.A. "Medical Applications of Shape Memory Alloys." Brazilian Journal of Medical and Biological Research, Vol. 36, 2003.
