What sizes does Nitinol tubing come in?

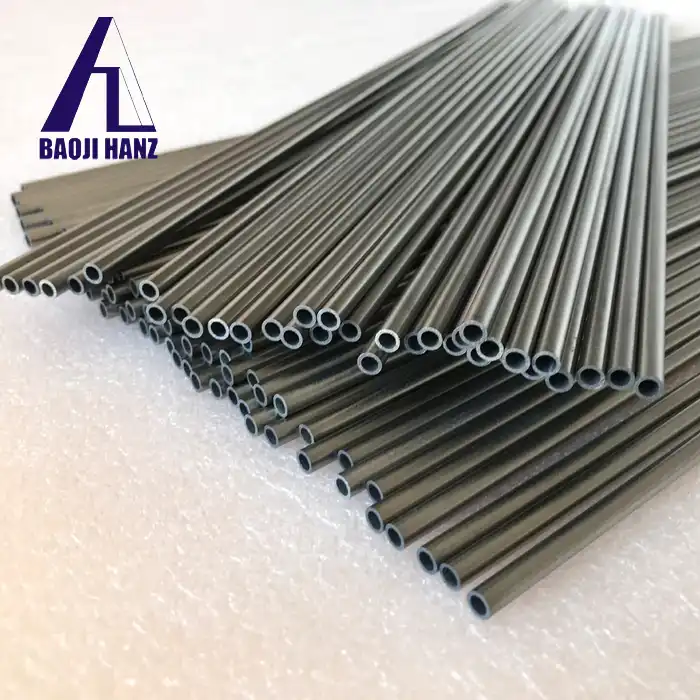

Nitinol tubing, a crucial component in various industries, comes in a wide range of sizes to meet diverse application requirements. The sizes of Nitinol alloy tubes typically range from as small as 0.1 mm (0.004 inches) in outer diameter to as large as 25 mm (1 inch) or more. The wall thickness of these tubes can vary from 0.025 mm (0.001 inches) to several millimeters, depending on the specific application and manufacturing capabilities. It's important to note that the size range for Nitinol tubing is not fixed and can be customized based on the needs of the project or industry.

The versatility in sizing allows Nitinol tubes to be used in various fields, from medical devices to aerospace applications. In the medical industry, for instance, ultra-thin Nitinol tubes with diameters as small as 0.2 mm are commonly used in minimally invasive surgical instruments. On the other hand, larger diameter tubes, such as those measuring 10 mm or more, find applications in industrial settings where greater strength and stability are required. The ability to manufacture Nitinol tubing in such a wide range of sizes is a testament to the advanced production techniques and the material's unique properties, including its superelasticity and shape memory characteristics.

Factors Influencing Nitinol Tube Sizing

Material Composition and Properties

The sizing of Nitinol alloy tubes is heavily influenced by the material's composition and properties. Nitinol, an acronym for Nickel Titanium Naval Ordnance Laboratory, is a shape memory alloy composed primarily of nickel and titanium. The exact ratio of these elements, along with any additional alloying components, can affect the material's behavior and, consequently, the achievable sizes in tube production.

The superelastic nature of Nitinol allows for the creation of tubes with extremely thin walls while maintaining structural integrity. This property is particularly advantageous in applications requiring flexibility and resistance to permanent deformation. The shape memory effect, another hallmark of Nitinol, enables the production of tubes that can revert to a predetermined shape when subjected to specific temperature changes, expanding the range of possible designs and sizes.

Manufacturing Techniques

The manufacturing process plays a crucial role in determining the sizes of Nitinol tubing available. Advanced production methods, such as precision drawing and laser cutting, have significantly expanded the range of achievable dimensions. These techniques allow for the creation of tubes with extremely small diameters and thin walls, pushing the boundaries of what was previously possible.

Cold working and heat treatment processes are essential in fine-tuning the mechanical properties of Nitinol tubes. These steps can affect the final dimensions of the tubing, as well as its performance characteristics. The expertise of manufacturers in these processes directly impacts their ability to produce Nitinol tubes in various sizes while maintaining consistent quality and performance.

Application Requirements

The intended application of Nitinol tubing is a primary factor in determining its size specifications. Different industries and applications have unique requirements that dictate the necessary dimensions of the tubing. For example, in the medical field, endoscopic devices may require Nitinol tubes with extremely small diameters and thin walls to navigate through blood vessels or other small bodily passages. In contrast, aerospace or automotive applications might demand larger diameter tubes with thicker walls to withstand higher stresses and provide structural support. The specific performance criteria, such as flexibility, strength, and thermal responsiveness, all play a role in determining the optimal size of Nitinol tubing for a given application.

Common Size Ranges for Specific Applications

Medical Devices

In the medical industry, Nitinol alloy tubes are extensively used due to their biocompatibility and unique properties. For catheter-based interventions, Nitinol tubes typically range from 0.2 mm to 2 mm in outer diameter, with wall thicknesses as thin as 0.05 mm. These dimensions allow for the creation of flexible, yet strong, guidewires and stent delivery systems. Dental applications often utilize Nitinol tubes with slightly larger diameters, ranging from 0.5 mm to 3 mm, particularly in orthodontic archwires and endodontic files. The superelasticity of Nitinol at these sizes provides the perfect balance of flexibility and strength required for dental procedures.

Aerospace and Automotive Industries

In aerospace applications, Nitinol tubing is often used in larger sizes, with outer diameters ranging from 5 mm to 25 mm or more. These tubes may have wall thicknesses of 0.5 mm to several millimeters, depending on the specific requirements of the application. Such dimensions are suitable for hydraulic systems, actuators, and structural components that benefit from Nitinol's shape memory and superelastic properties. The automotive industry utilizes Nitinol tubes in various sizes, typically ranging from 2 mm to 15 mm in outer diameter. These tubes find applications in sensors, actuators, and damping systems. The ability to produce Nitinol tubing in these sizes allows for the development of innovative solutions in vehicle design and performance enhancement.

Consumer Electronics

In the realm of consumer electronics, Nitinol tubes are often used in smaller sizes. Diameters typically range from 0.5 mm to 5 mm, with wall thicknesses as thin as 0.1 mm. These dimensions are suitable for applications such as antennas in mobile devices, where the shape memory effect of Nitinol can be leveraged to create deployable structures. Wearable technology also benefits from Nitinol tubing in this size range, utilizing the material's flexibility and durability in items like smartwatch bands and flexible displays. The ability to manufacture Nitinol tubes in these precise dimensions contributes to the development of sleek, functional electronic devices.

Customization and Future Trends in Nitinol Tube Sizing

Advancements in Manufacturing Technology

The continuous evolution of manufacturing technologies is expanding the possibilities for Nitinol tube sizing. Innovations in precision machining, such as micro-laser cutting and advanced extrusion techniques, are enabling the production of Nitinol tubes with even smaller diameters and more intricate designs. These advancements are particularly beneficial for industries requiring miniaturized components, such as microelectronics and nanotech applications. Furthermore, improvements in material processing are enhancing the consistency and quality of Nitinol tubing across various sizes. This progress allows for better control over the material's properties, potentially extending the range of available sizes while maintaining or improving performance characteristics.

Emerging Applications Driving Size Innovations

As new applications for Nitinol alloy tubes emerge, there is a growing demand for sizes that push the boundaries of current manufacturing capabilities. For instance, the field of robotics is exploring the use of ultra-thin Nitinol tubes for artificial muscles and actuators, potentially requiring diameters smaller than what is currently commercially available. In the biomedical field, there is ongoing research into using Nitinol tubing for targeted drug delivery systems and neural interfaces. These applications may necessitate the development of Nitinol tubes with nanoscale dimensions, driving innovation in manufacturing processes and material science.

Customization and Specialized Production

The increasing demand for tailored solutions is leading to more customized Nitinol tube production. Manufacturers are developing capabilities to produce tubes with unique combinations of diameters, wall thicknesses, and material properties to meet specific client needs. This trend towards customization is particularly evident in industries like aerospace and medical devices, where off-the-shelf solutions may not suffice. Specialized production techniques, such as gradient alloy composition along the length of a tube or variable wall thickness, are expanding the concept of Nitinol tube sizing. These innovations allow for the creation of tubes with properties that change along their length, offering new possibilities for designers and engineers working with Nitinol.

Conclusion

The sizes of Nitinol tubing span a vast range, accommodating diverse applications across multiple industries. From microscopic medical devices to robust aerospace components, the versatility of Nitinol alloy tubes continues to drive innovation and expand possibilities. As manufacturing technologies advance and new applications emerge, we can expect even greater diversity in Nitinol tube sizing, further cementing its position as a crucial material in modern engineering and design. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1.Johnson, A. D., & Schlüter, K. (2018). Nitinol: The material with a memory. Advanced Materials & Processes, 176(3), 42-46.

2.Chen, Q., & Thouas, G. A. (2015). Metallic implant biomaterials. Materials Science and Engineering: R: Reports, 87, 1-57.

3.Pelton, A. R., Dicello, J., & Miyazaki, S. (2000). Optimisation of processing and properties of medical grade Nitinol wire. Minimally Invasive Therapy & Allied Technologies, 9(2), 107-118.

4.Stoeckel, D., Pelton, A., & Duerig, T. (2004). Self-expanding nitinol stents: material and design considerations. European radiology, 14(2), 292-301.

5.Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

6.Meng, Q., Yang, H., Liu, Y., & Nam, T. H. (2019). Compositionally graded NiTi plate prepared by diffusion annealing. Scripta Materialia, 165, 66-70.
