Baoji Hanz Metal Material Co., Ltd. has relatively advantageous technologies and professional after-sales team support in the research and technological innovation of Titanium-nickel straight wire in the same industry.
Products Description
Basic knowledge
Titanium-nickel straight wire has special properties and broad application prospects. It has excellent corrosion resistance, biocompatibility, etc.
Production process
Steps
-Raw materials
-Casting, smelting
-Heat treatment
-Annealing treatment
-Surface treatment
- Inspection
| Mechanical properties | |
| Shape |
wire,rod,bar |
| Feture | Corrosion resistance, superelasticity |
| Ni (Min) | 50 |
| Tensile strength | 800-1500MPa |
| Phase transition temperature (Afc) | -50℃ ~ +120℃ |
| Density | 6.45g/cm³ |
| MOQ | 1kg |
| standard | ASTM F2063 |
Chemical Composition
| Element | Mass percentage |
| Ni | 54.5-57.0 |
| C |
≤0.040 |
| Co |
≤0.050 |
| Cu |
≤0.010 |
| Cr |
≤0.010 |
| H |
≤0.005 |
| Fe |
≤0.050 |
| Nb |
≤0.025 |
| N |
≤0.005 |
| O |
≤0.040 |
| Ti | Margin |
Application

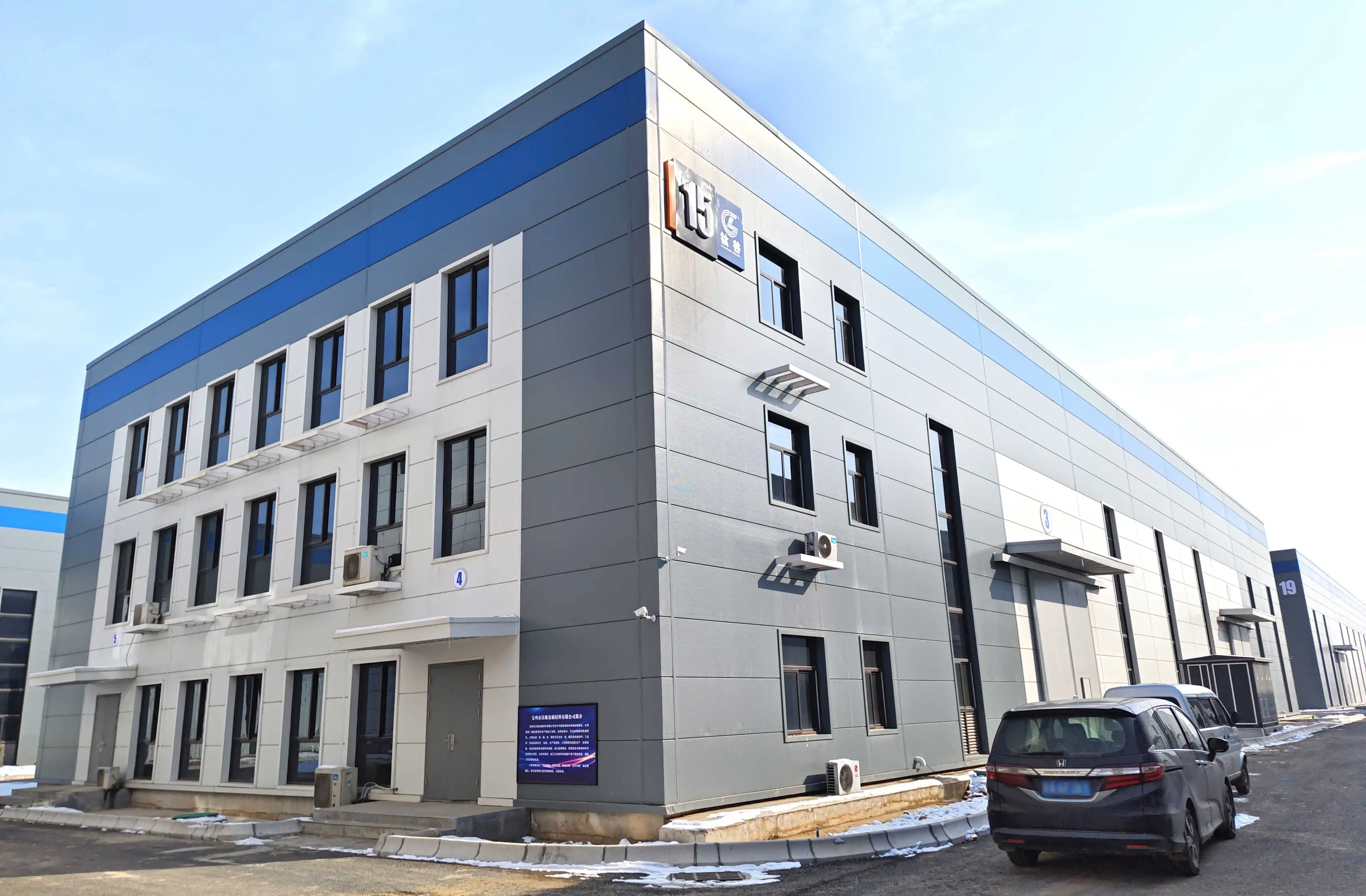

Company Information
Our certificates
Our equipment
Packaging/transportation/payment method
OEM Services
1. Customized Logo
2. Multi-channel payment methods;
3. Customization based on provided drawings is available to meet the diverse needs of customers.
4. 24-hour product technology and consultation;
5. Packaging can be customized;
FAQ
Q1: What is the material of the Nitinol SMA Wire ?
A1: The Nitrex Guidewire is made from high-quality nitinol shape memory alloy, offering superior strength and flexibility.
Q2: Can I customize the guidewire length and diameter?
A2: Yes, we offer customization options based on your specific requirements. Please contact us for more details.
Q3: Does the guidewire come with certification?
A3: Yes, all of our products are certified with ISO9001:2015.
Q4:What is the minimum order quantity for the product?
A4:If in stock, the minimum order quantity is 1kg or 100meters. If not, it depends on the specifications.
