Products Description
Product Name of Cold rolled nitinol sheet

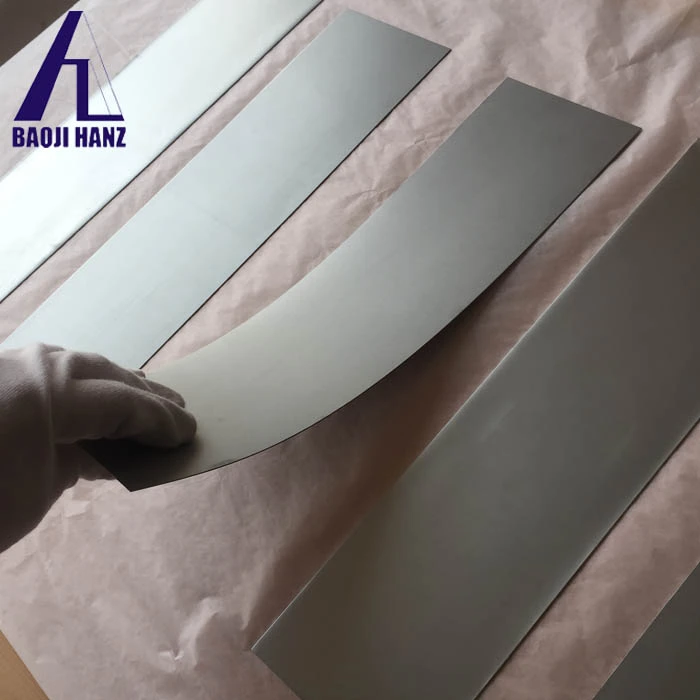

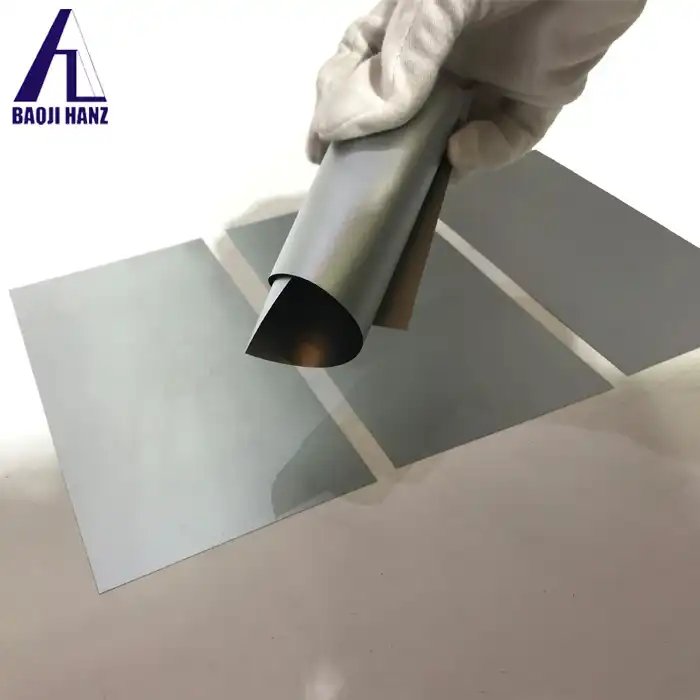

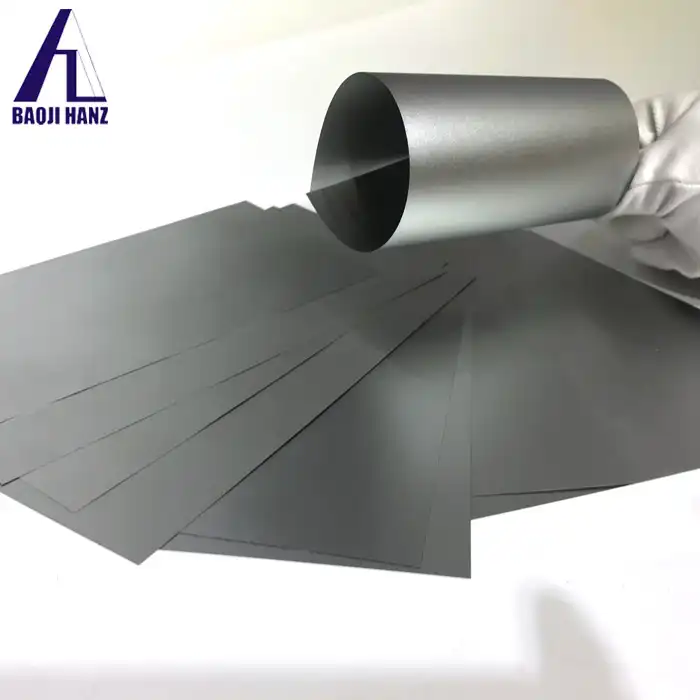

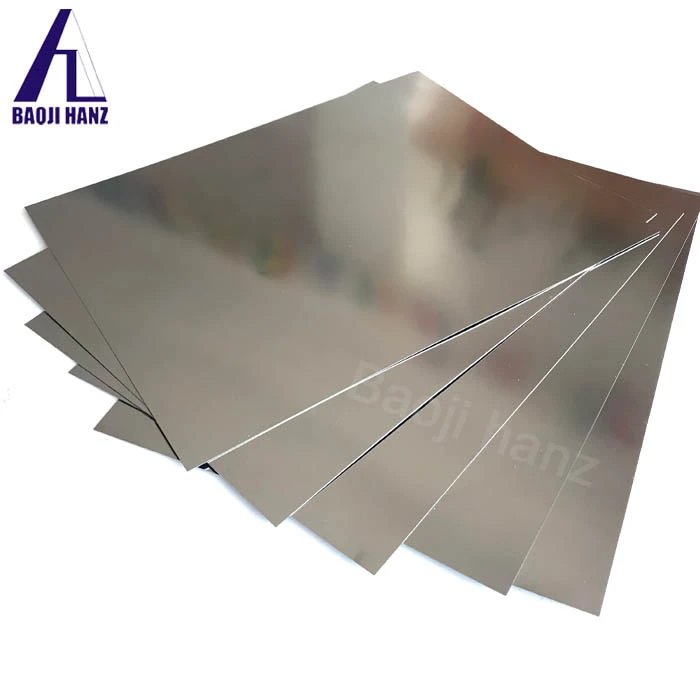

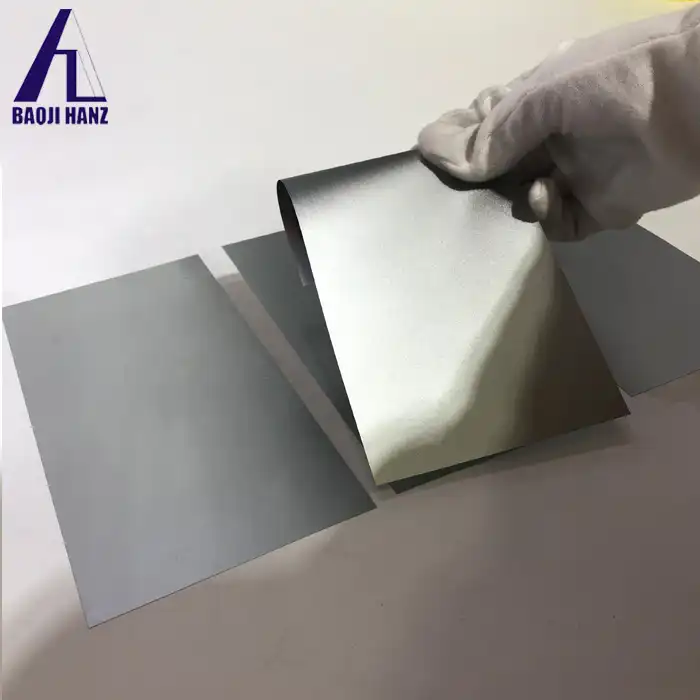

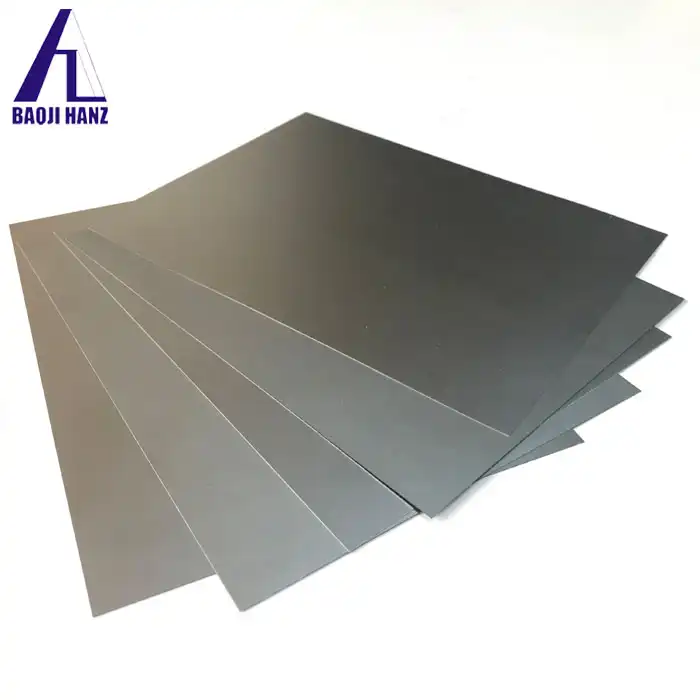

Cold rolled nitinol sheet / Nickel Titanium Alloy Plate (Shape Memory & Superelastic)
Overview of Cold rolled nitinol sheet
Cold rolled nitinol sheet(Niti) is a high-performance shape memory alloy made of nickel and titanium in near-equiatomic ratio. It features exceptional shape memory effect (SME), superelasticity (SE), biocompatibility, corrosion resistance and fatigue durability. Widely used in medical devices, aerospace, automotive, micro-electronics, robotics.
Specifications
| Material | Nickel-Titanium Alloy (NiTi) |
| Standard | ASTM F2063, GB 24627 |
| Ni Content | 54.5–56.2 wt% |
| Af Temperature | -20°C ~ 120°C (custom) |
| Surface | Cold rolled |
| Density | 6.45 g/cm³ |
| Tensile Strength | ≥850MPa |
| Thickness | 0.01mm min |
| Width | 100mm max |
| Length | 100mm – 2000mm (customizable) |
Key Features & Applications
Feture of Cold rolled nitinol sheet
Shape memory effect: It can regain the preset shape when heated to the transformation temperature.
Super elasticity: It can recover up to 8% of the deformation and has no permanent deformation.
Biocompatibility: Certified by ISO 10993 and ASTM F2063, suitable for implantable devices.
High corrosion resistance: Stable in body fluids, seawater and harsh environments.
Outstanding fatigue life: Stable performance under repeated deformation.
Processability: Can be processed by laser cutting, stamping, etching and bending.
Medical
1. Orthopedic fixation plates and clips;
2. Orthodontic appliances;
3. Minimally invasive surgical instruments;
4. Dental and implantable components;
Industrial & Aerospace
1.Thermal actuators and sensors
2.Deployable aerospace structures
3.Automotive intelligent components
4.Robots and micro-electromechanical systems equipment
Packaging and Delivery
1. Shockproof, moisture-proof + vacuum packaging;
2. Standard export cartons/wooden cases;
3. Delivery time: 7 - 15 days (in stock/custom order);
Quality Assurance
1.100% Conduct inspections before shipment
2.Test report: Composition, mechanical properties, transition temperature
3.ASTM F2063 standard
Customized service
1.Customizable thickness, width and length
2.Customizable heating temperature and performance
3.Surface treatment (polishing, acid washing, passivation)
4.Laser cutting and stamping components
5.Offer OEM and ODM services
FAQ
Question 1: What are the differences between shape memory alloys and superelastic nickel-titanium alloy sheets?
Answer: Shape memory alloys will return to their original shape when heated; while superelastic Cold rolled nitinol sheet can automatically return to their original shape at room temperature without the need for heating.
Question 2: Do you provide medical-grade nickel-titanium alloy sheets?
Answer: Yes. Our medical Cold rolled nitinol sheet comply with the ASTM F2063 standard and have good biocompatibility.
Question 3: Can you provide services for custom thickness, size, and heating temperature?
Answer: Yes. The thickness range is 0.05 millimeters to 20 millimeters. Customized width and length are available, as well as special anti-oxidation temperatures ranging from -20℃ to 120℃.
Question 4: How long is the delivery period?
Answer: In stock products: 3-7 days; Custom orders: 10-20 days.
Question 5: Do you support laser cutting/molding/processing?
Answer: Yes.
Get a Quote
If you need customized dimensions, thickness, surface treatment, performance or processing services for nitinol sheets, please leave us a message specifying:
1.Product type (shape memory type / super elastic type)
2.Thickness, width, length quantity
3.Application (medical/industrial/aerospace)
4.Target temperature (if required)
5.Your drawings or requirements
We will provide you with the price, delivery time and professional solutions within 12 hours. Email:baojihanz-niti@hanztech.cn
