Baoji Hanz Metal Material Co., Ltd.: Your Trusted Wire Niti Manufacturer & Supplier
Baoji Hanz Metal Material Co., Ltd. specializes in the research, production, and sales of wire niti. The company's RD team continuously innovates and optimizes the composition and process of the nickel titanium alloy, making the product's shape memory effect and super elasticity more outstanding. Advanced production equipment with strict quality inspection processes ensure that the quality of each batch of products is stable and reliable.
Wire Niti Basic knowledge

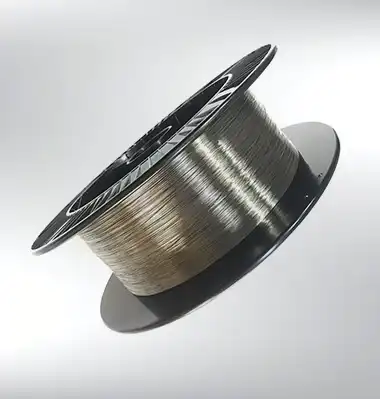

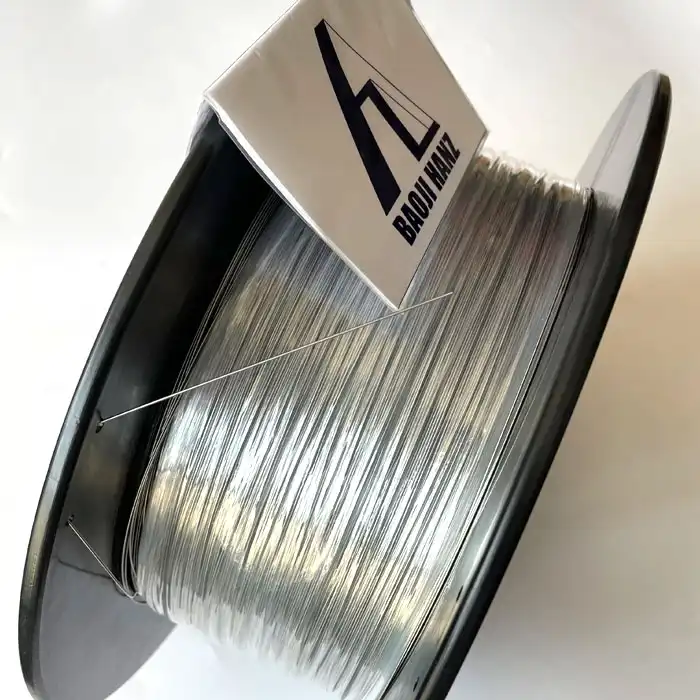

Wire niti usually refers to nickel-titanium wire, which is a shape-memory alloy wire with nickel and titanium as the main components
Application
Nickel titanium wire, with its shape-memory effect, superelasticity, and biocompatibility, finds extensive use in various applications:
- Medical field: It is used for orthodontic arch wires, endodontic instruments, stents, and orthopedic fixators, among others.
-Industrial and smart devices: It is used in pipe connectors, fasteners, and the joints of smart robots, flexible actuators, etc.
- Aerospace: It can used to make satellite antennas, deformable wing components, etc., catering to the need for shape changes in extreme environments.
- Daily necessities: It is used in eyeglass frames, mobile phone antennas, etc.
Specification
| Standard | ASTM F2063 |
| Production process | Bending, Welding, Decoiling, Cutting |
| Tensile strength | 800-1500MPa |
| Phase transition temperature (Afc) | -20℃~100℃ |
| Surface | Black、blue、 amber |
| Density | 6.45g/cm³ |
| Tolerance | +/-0.01mm |
| Application | Industrial and medical |
|
Surface |
mechanical polishing |
Chemical Composition
| Element | Mass percentage |
| Ni | 54.5-57.0 |
| C |
≤0.040 |
| Co |
≤0.050 |
| Cu |
≤0.010 |
| Cr |
≤0.010 |
| H |
≤0.005 |
| Fe |
≤0.050 |
| Nb |
≤0.025 |
| N |
≤0.005 |
| O |
≤0.040 |
| Ti | Margin |
Application
Our Certificate
Our equipment
Packaging/Transportation/Payment method
OEM Services
We provide a comprehensive customization service for wire niti, committed to meeting the diverse needs of various industries. In terms of specifications, the diameter range extremely fine 0.01mm to 7.0mm, whether you need micro-wire for precision medical instruments or thicker specifications of wire for industrial equipment, it can provided accurately. For special diameter tolerance requirements, such as ±0.01mm high precision tolerance, it can also be achieved with advanced equipment and mature processes.
In of material properties, the composition ratio of the nickel titanium alloy can be adjusted according to your application scenario, and the nickel titanium wire with different shape memory temperature and super-elastic range be customized.
Surface treatment also supports customization, providing pickling to remove the oxide skin to achieve a clean state, electropolishing to achieve a bright state, and blue, deep brown and other oxidation treatment, to meet different needs such as beauty, corrosion resistance, and biocompatibility. And it can be cut to the length you need custom length cutting, and provide rolled or straight bars packaging, which is convenient for subsequent processing and use.
FAQ
Q1: What material is the Niti wire?
A1: The Nitrex wire is made from high-quality NiTi shape memory alloy, strength and flexibility.
Q2: Can the specifications and packaging be customized?
A2: Yes, both the specifications and packaging can be customized according to your sample drawing.
Q3: What is the minimum order quantity for the product?
A3: If in stock, the minimum order quantity is 100 meters If not, the minimum order is 1 kilogram or 1000 meters.
Contact Us
wire niti products are widely used in medical, aerospace and other fields, selling well both domestically and abroad. The company adheres to the of customer first, providing customized services and all-round after-sales, and working hand in hand with customers for common development. Please contact us at any time:
Email: baojihanz-niti@hanztech.cn
We are here to assist you and look forward to your inquiry!
