Products Description
Nitinol wire is a shape memory alloy (SMA) composed of nickel and titanium. The use of nitinol is ubiquitous in endovascular stents and has proven both safe and effective. The alloy is not new to orthopedic fracture surgery, as there have been descriptions of usage dating back to the 1980’s. However there has been a resurgence in the use of nitinol orthopaedic implants primarily in foot and ankle as well as hand surgery. Currently, SMA staples are used as stand-alone implants for interfragmentary compression across osteotomies, arthrodeses, as well as for fracture fixation. Recent reports of orthopaedic use of staple fixation have included first metatarsophalangeal joint arthrodesis,1 scaphoid fractures,2 intercarpal fusion,3 and patellar fractures.4 They also have been used for ligament fixation, facial fractures and reconstructions, and spinal procedures.5 Successful growth modulation with SMA staples has been reported in animal models.6
Specifications
1.Nitinol wire
2. Superelastic
3. Af-30-20 Degree ℃
4.Diameter range: 0.015-3mm
5.Surface options: light oxide/ Black/ Polished
5.Lead time: 3-15 days, if sizes are available in stock, only 3 days for shipping
6.MOQ: 1KG
Nitinol grades
| Name | Grade | Transfermation temperature AF | Form |
Standard
|
| Shape memory nitinol alloy | Ti-Ni-01 | -30℃~20℃ | wire, bar, plate, tube | ASTM F2063 or industry standard |
| Ti-Ni-02 | 21℃~100℃ | |||
| Superelastic nitinol alloy | TiNi-SS | -5℃~5℃ | ||
| Low temperature superelastic nitinol alloy | TN3 | -30℃~0℃ | ||
| TNC | 0℃~20℃ | |||
| Medical Nitinol alloy | TiNi-YY | 33+/-3℃ | ASTM F2063 | |
| Narrow Hysteresis nitinol alloy | Ti-Ni-Cu | 20-75℃ | wire, bar | industry standard |

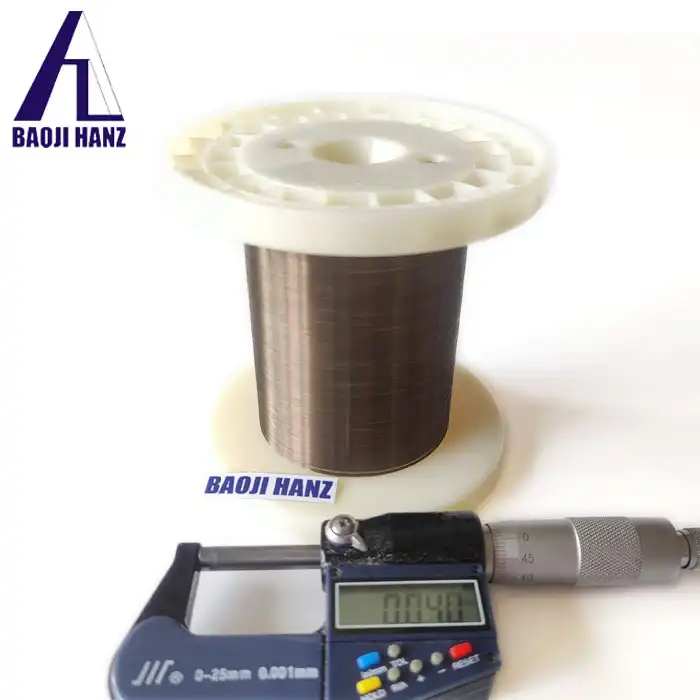

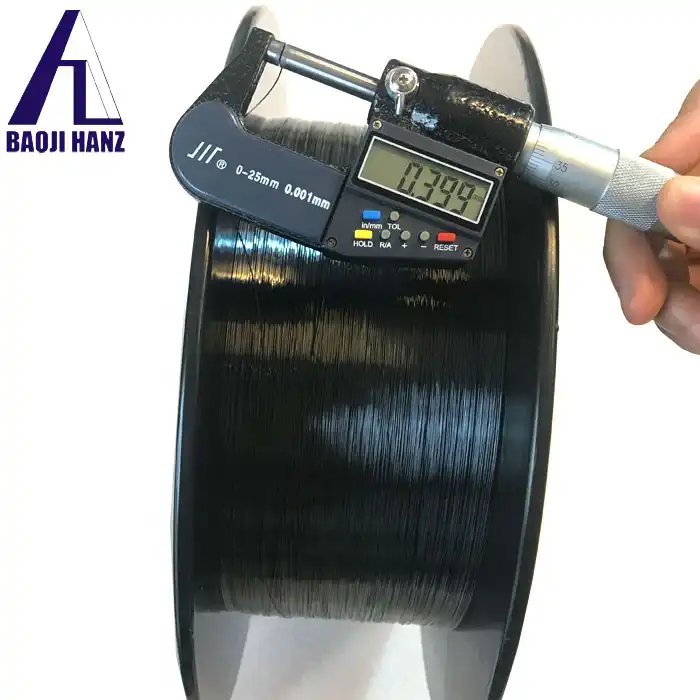

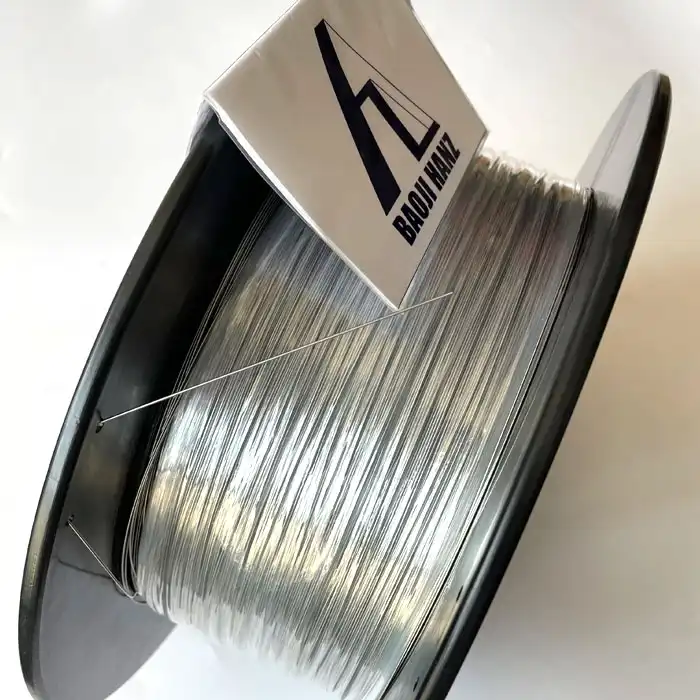

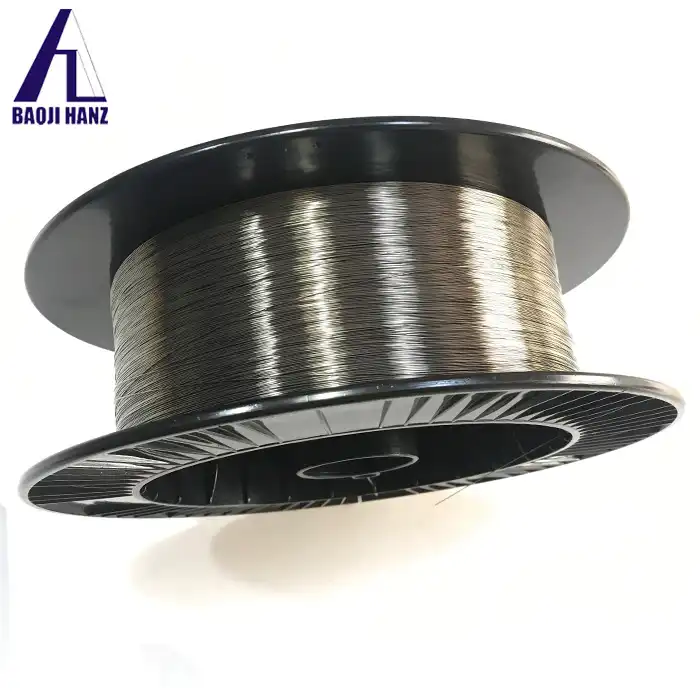

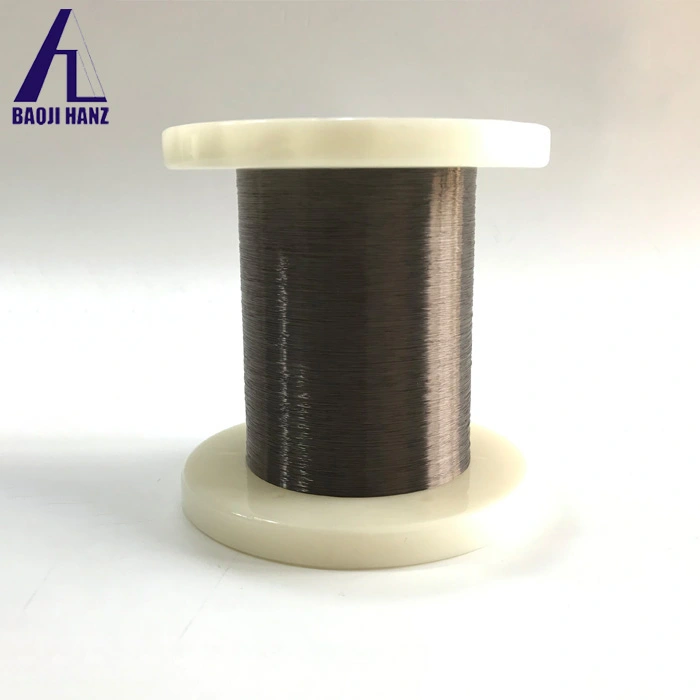

Detailed images
Baoji hanz supply high quality nitinol wires, most of diameter and surface are in stock, sample is available.
Features of nitinol wires
(1) Shape memory characteristics;
(2) Super elastic;
(3) sensitivity to temperature changes in the oral cavity;
(4) Corrosion resistance;
(5) Anti-toxicity;
(6) Soft correction power;
(7) Good shock absorption characteristics.
Contact us
If you are interested in our Nitinol wire products, please contact us via email or Whatsapp. We will send you the most favorable quotation within 24 working hours!
