Products Description

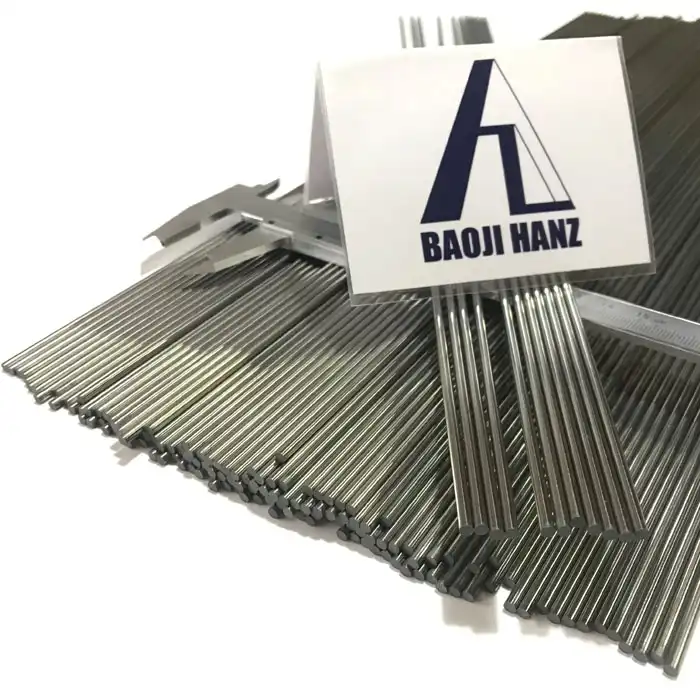

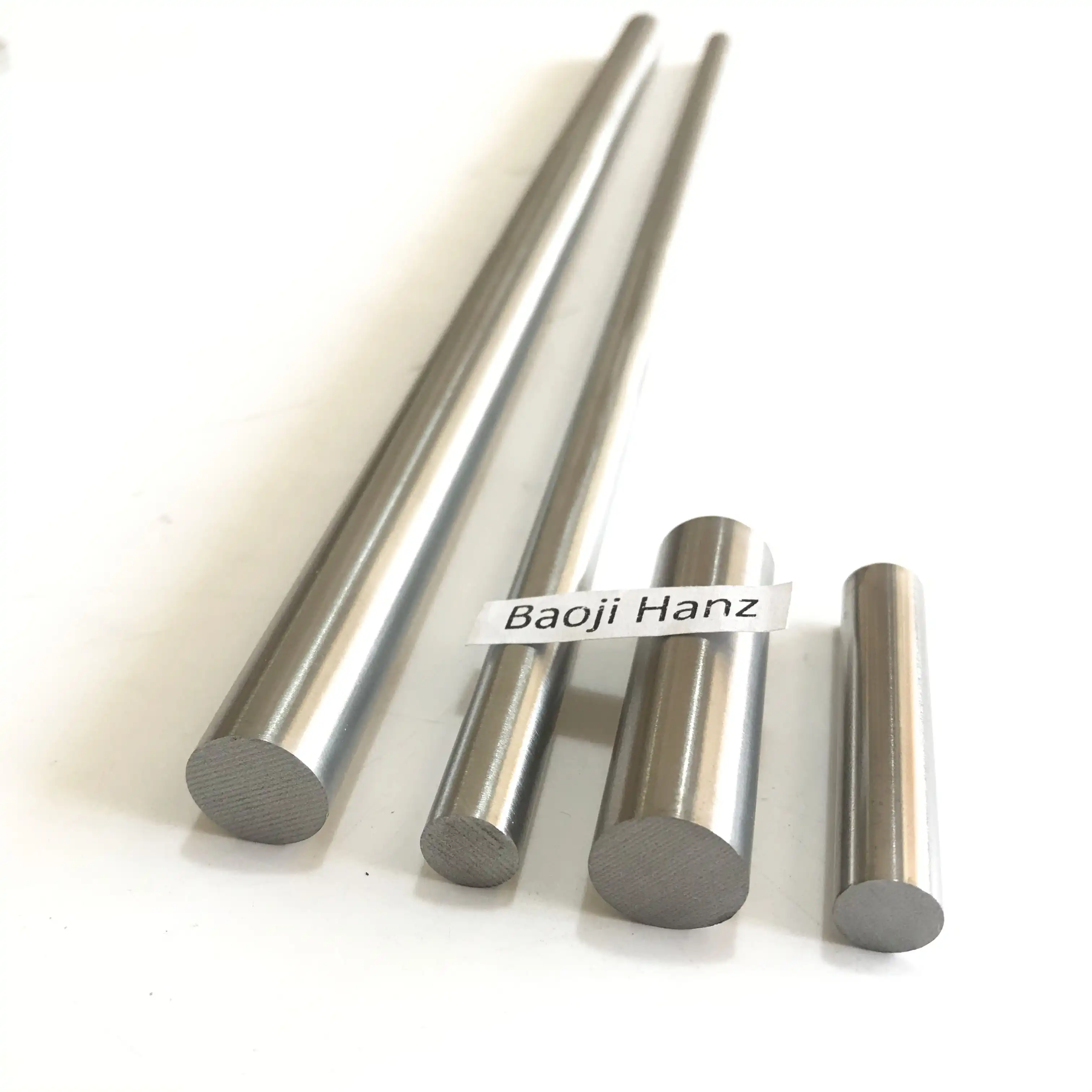

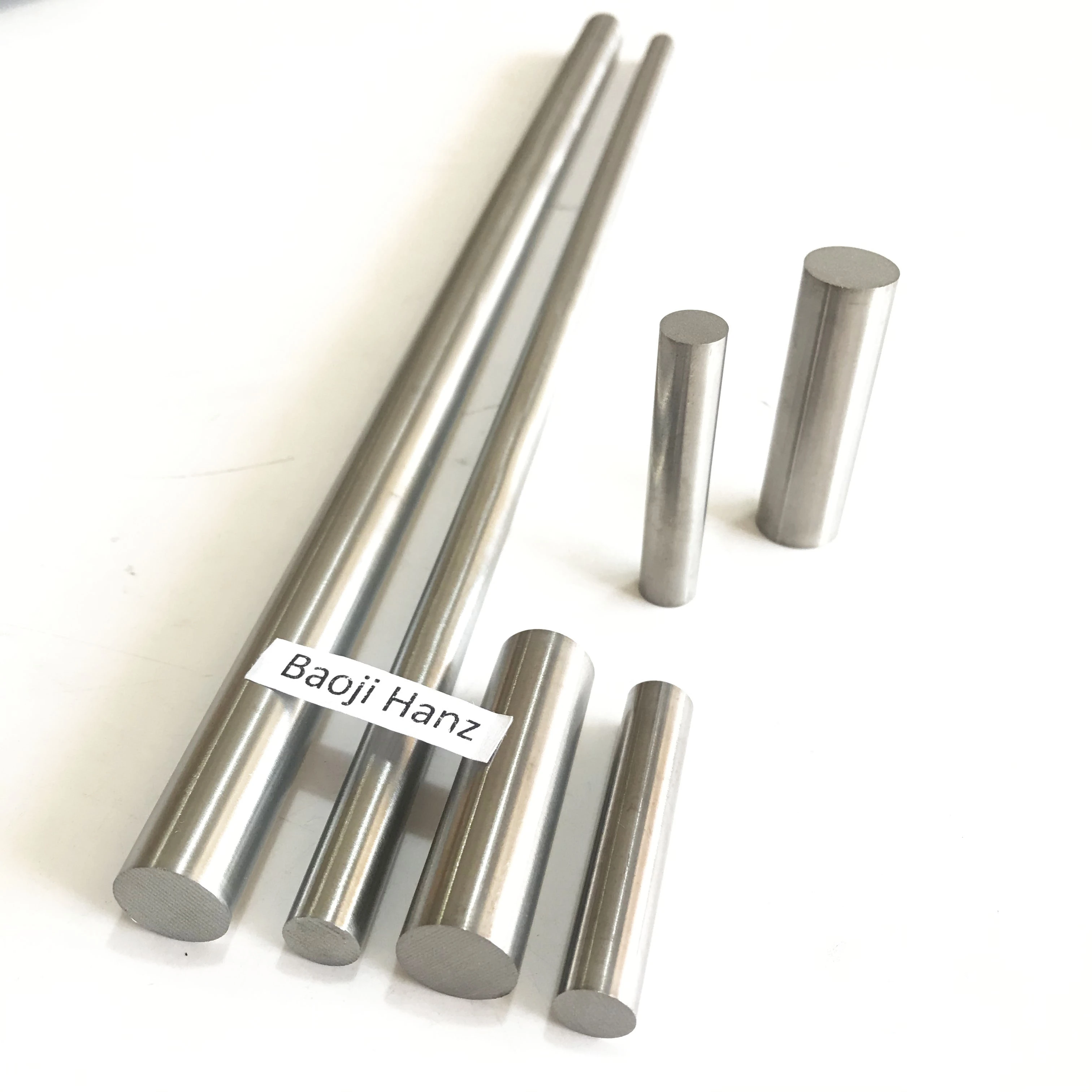

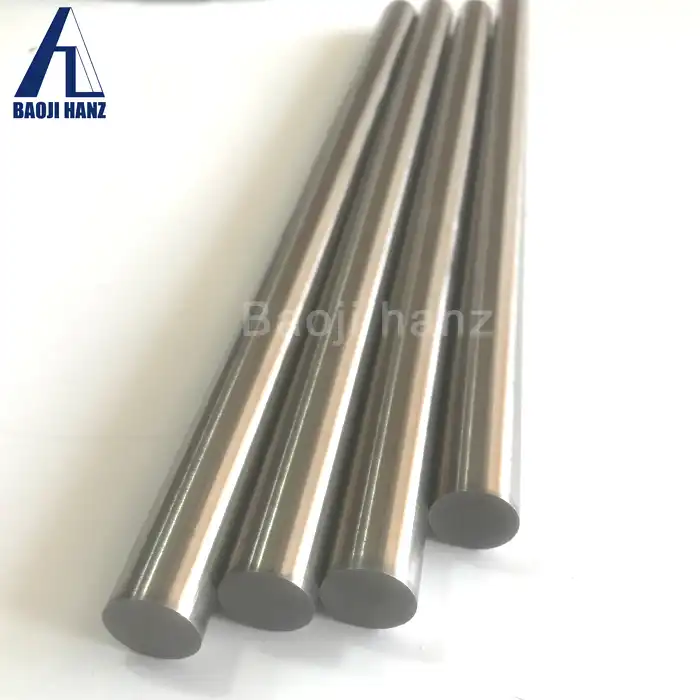

Basic Knowledge of Nitinol Round Bar
Nickel-titanium memory alloy has good mechanical properties and corrosion resistance, as well as good biocompatibility and special shape.
The memory function makes the orthopedic internal fixation instrument have the function of continuous self-pressurization, which can greatly shorten the healing cycle of patients.
The special properties of nitinol round bar are Widely used in glasses, magic props, aerospace, automobiles and new industries.
| nitinol round bar of chemical composition： | |||||||||||||
| nitinol alloy | % | Ni | C | Co | Cu | Cr | H | Fe | Nb | N+O | Ti | ||
| NiTi | min | 54.5 | margin | ||||||||||
| max | 57.0 | 0.05 | 0.05 | 0.01 | 0.01 | 0.005 | 0.05 | 0.025 | 0.05 | ||||
| Main properties of nitinol shape memory alloy: | |||||||||||||
Physical properties of Nitinol Round Bar:
|
Tensile strength |
850～1200MPa |
|
Yield strength |
195 ~ 690 MPa |
| Titanium content | 54% |
|
Elongation |
25 ~ 50% |
| Material | Nickel titanium alloy |
| Standard | ASTM F2063 |
|
Specification |
above 0.1mm diameter * coiled wire (straight wire), φ 0.5 ~ φ 10.0× L. |
|
Phase transition temperature |
-100℃ ~ 100℃ |
|
MOQ |
Small size of 5 pieces, large size can be customized for 1 piece. |
| Application | stress bar, thermal drive spring, temperature control element, communication antenna, spectacle frame, bra bracket, etc. |
Applicatio of Nitinol Round Bar:
1. Application field: used for superelastic memory alloy mobile phone antenna, children's toy antenna and optical glasses frame. With the development of the times, it has been gradually used in ladies' body shaping clothes, and has been used as scientific research materials, frequently appearing in materials laboratories of various science and technology colleges.
2. Product characteristics: It has mechanical properties and corrosion resistance, has certain memory function, and can recover the memory shape at the phase transition temperature.
3. Product classification: temperature memory and elastic memory.
Production equipment diagram
About us
Baoji Hanz Metal Material Co., Ltd. is a manufacturer specializing in the research and development of Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, Nickel Titanium Alloy.
