Products Description Of Nitinol Sheet Superalastic
ASTM F2063 Nickel Titanium Alloy nitinol sheet superalastic/plate/foil/strip
Baoji Hanz Metal Materials Co., Ltd. is a comprehensive enterprise specializing in the research, production and sales of nickel-titanium alloy materials. The company is located in the world-renowned "China Titanium Valley" - the Baoji High-tech Development Zone of Shaanxi Province. We have a professional sales and technical team. Our products are sold to the United States, the United Kingdom, France, Germany, Canada, Sweden, Turkey, South Korea, Japan, Malaysia, China and over 20 other countries around the world.
The main products include nickel titanium wires, nickel titanium flat wires, nickel titanium straight wires, nickel titanium tubes, nickel titanium support tubes, nickel titanium rods, nitinol sheet superalastic, nickel titanium foils, nickel titanium staples, nickel-titanium rings, and nickel titanium processed parts and other metal products.
Corporate Vision: Build a one-stop intelligent manufacturing enterprise for titanium materials.
Business Philosophy: Pragmatic, honest, innovative, efficient, and win-win.
Parameters of Nitinol Sheet Superalastic (super-elastic nickel-titanium alloy plates)
|
item |
nitinol sheet superalastic |
|
Application |
industry |
|
Width |
300mm |
|
Length |
1000mm |
|
Technique |
Cold Rolled |
|
Ti (Min) |
45% |
|
Processing Service |
Bending, Welding, Decoiling, Cutting, Punching |
|
Standard |
ASTM |
|
Material |
nickel titanium |
|
Surface finish |
Sandblasting, pickling, polishing |
|
Advantage |
superelastic |
|
Product Categories |
Grade |
Transormation Temperature Af |
Shape |
Standard |
|
Shape Memory Nitinol Alloy |
Ti-Ni-01 |
20℃~40℃ |
Wire,Bar, Sheet,Plate |
Customer specified or industry standard |
|
Superelastic Nitinol Alloy |
Ti-Ni-02 |
45℃~90℃ |
||
|
Low temperature Superelastic Nitinol Alloy |
TN3 |
-5℃~-15℃ |
||
|
TNC |
-20℃~-30℃ |
|||
|
Medical Nitinal alloy |
TiNi-SS |
33℃+/-3℃ |
ASTM F2063 |
|
Tensile strength (Mpa) |
Yield strength (Mpa) |
Elongation |
Af (°C) |
Ni (%) |
O (%) |
Fe (%) |
H (%) |
N (%) |
Ti (%) |
|
895 |
210 |
10 |
15 |
55.7 |
0.02 |
0.012 |
0.001 |
0.04 |
R |
Products Application
Medical Device: Breast implants,spine instrument set,orthopedic implants, prosthetics foot etc.
Artificial limbs,artificial breast, etc
Dental
Cardiac stent and other kinds

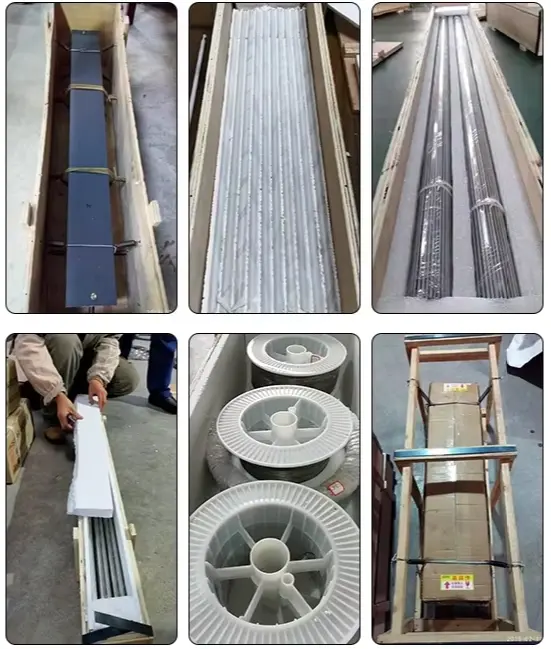

Transportation and Packaging
