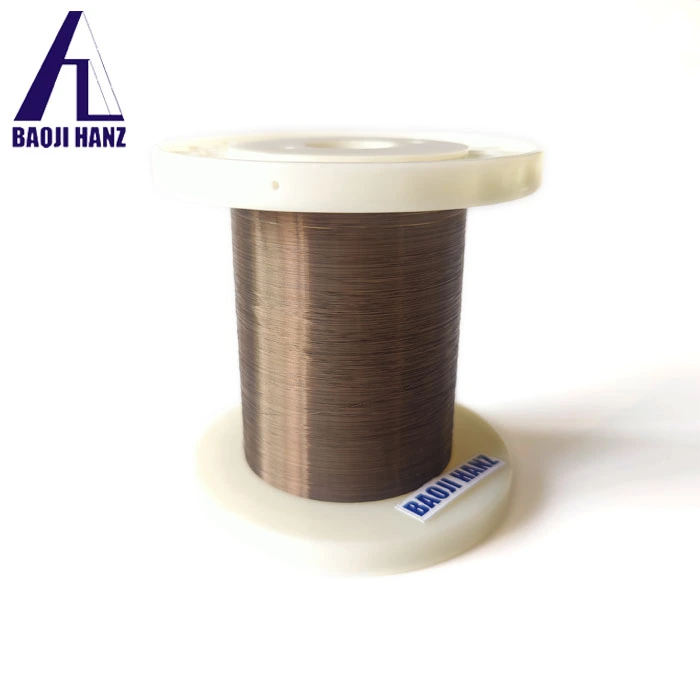

Product Details of Shape Memory 0.08mm Nitinol Wire
The 0.08mm Shape Memory Nitinol Wire is a precision intelligent material developed based on nickel-titanium (NiTi) binary alloy. With accurate shape memory effect, excellent superelasticity and biocompatibility, it is specially designed for high-precision scenarios. Through strict composition ratio and precision processing technology, the product achieves stable performance under ultra-fine specifications, and is widely applicable to high-end fields such as minimally invasive medical treatment, precision electronics, and intelligent equipment. It is an intelligent material solution with both flexibility and reliability.
I. Features: Combining Intelligent Response and Precision Performance
- Accurate Shape Memory Effect: Leveraging the unique shape memory properties of nitinol alloy, it can withstand obvious plastic deformation and accurately return to its preset shape when heated to a specific temperature (Af). The temperature for shape recovery can be customized between -50℃~100℃ to meet the needs of different application scenarios.
- Excellent Superelasticity: In the austenite temperature range (above Af), it can achieve recoverable strain up to 8%, and instantly recover to its original shape after unloading without permanent deformation. Its plateau stress ranges from 200 to 600MPa, far exceeding the elastic limit of traditional metals, and the fatigue life is ≥10⁷ cycles, which can withstand repeated deformation impacts for a long time.
- Ultra-fine Precision Specification: The diameter is precisely controlled at 0.08mm with a tolerance of only ±0.004mm, and the roundness tolerance is 1/2 of the dimensional tolerance, ensuring the overall dimensional uniformity of the wire. The ultra-fine specification endows the product with excellent flexibility and operability, which can easily pass through narrow spaces and adapt to micro-structure design.
- Excellent Biocompatibility: Adopting a precise ratio of 55%~56% nickel and 44%~45% titanium, no harmful impurities are added, which meets the medical grade material standards. It has no adverse reactions in contact with human tissues and can be used for long-term implantable medical devices.
- Stable Physical and Chemical Properties: It has good corrosion resistance and oxidation resistance, and can adapt to various complex working conditions such as body fluids and industrial environments; the surface is treated with precision polishing, with low roughness, reducing friction loss with contact components.
II. Core Technical Parameters
| Parameter Item | Parameter Value/Description |
| Product Material | Nitinol Shape Memory Alloy (NiTi Alloy), Ni:55-56%, Ti:44-45% |
| Diameter Specification | 0.08mm (Customizable with more precise tolerance of ±0.003mm) |
| Shape Memory Temperature (Af) | 20-30℃ (Standard medical grade, customizable from -40℃ to 95℃ on demand) |
| Superelastic Strain | ≤8% |
| Tensile Strength | ≥1000MPa |
| Elastic Modulus | 28-41GPa (Austenite phase); 15-20GPa (Martensite phase) |
| Surface Condition | Precision Polishing/Light Oxide Black Surface (Optional) |
| Product Form | Straight Wire, Spooled (Customizable Length) |
| Executive Standard | ASTM F2063, ISO 13485 |
| Applicable Environment | Body Fluid, Air, Inert Gas, etc., -00℃~100℃ |
iII. Typical Application Fields
Medical and Health Field (Main Application)
With ultra-fine specifications, biocompatibility and accurate memory effect, it is widely used in minimally invasive medical devices: such as vascular interventional guidewires and neural interventional guidewires, which can flexibly turn in human lumens and maintain preset shapes; orthodontic files and root canal treatment instruments, adapting to operation in narrow spaces of teeth; precision surgical auxiliary devices in otolaryngology, urology, etc., as well as biodegradable stent auxiliary wires.
Precision Electronics and Intelligent Equipment
Used in micro-sensors and micro-actuators, such as temperature-triggered switches and deformation drive components of precision instruments; flexible support structures of smart wearable devices, such as micro-antennas and deformable sensor components; micro-joint drive wires in the robot field, realizing precise and gentle motion control.
High-end Consumer and Industrial Fields
Ultra-fine elastic components for customized spectacle frames, balancing light weight and durability; ultra-fine elastic fishing lines for precision fishing tackle, improving fishing sensitivity and tensile strength; micro-temperature control structural components in the aerospace field, adapting to the shape stability requirements under extreme temperature environments.
Baoji Hanz Metal Material Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specializes in manufacturing all shapes of tungsten, molybdenum, tantalum, niobium , titanium, nickel products and other alloy.
Our Service
1. Competitive price.
2. Our strengths over other suppliers.
3. Reliable quality on the base of the same price.
4.Timely delivery as your as your requirements.
5.Professional service to cut much purchasing costs down.
6.We offer discount for old customers
7.We do our best to meet the requirements of customers.
8.Faced with problems related with products,please feel free to contact us.
We will try our best to help you.
active members
years experience
events & challenges
expert instructors
IV. Quality Assurance and Production Advantages
Full-process Quality Control
Adopting a strict full-process production management system, from raw material selection to finished product delivery, each link is subject to precise testing to ensure stable and consistent product performance.
Authoritative Standard Certification
The product complies with ASTM F2063 (Shape Memory Alloy Material Standard) and ISO 13485 (Medical Device Quality Management System Standard), with complete quality traceability reports, which can meet the qualification requirements of high-end fields such as medical treatment and aerospace.
Customization Service
Can customize phase transition temperature, surface condition, product form (straight wire/spool), length specification, etc. according to customer needs, providing targeted material solutions.
V. Usage Notes
1. The phase transition temperature of the product can be detected by professional equipment. Before use, it is necessary to confirm that the actual application temperature matches the customized Af temperature;
2. Avoid excessive stretching (exceeding 8% strain) or high-temperature exposure (exceeding 100℃) during processing to avoid affecting the shape memory performance;
3. Medical grade products need to be strictly sterilized before use, and autoclave sterilization or ethylene oxide sterilization is recommended;
4. Store in a dry and ventilated environment, avoiding contact with corrosive gases or liquids.
