What is Nitinol clip?

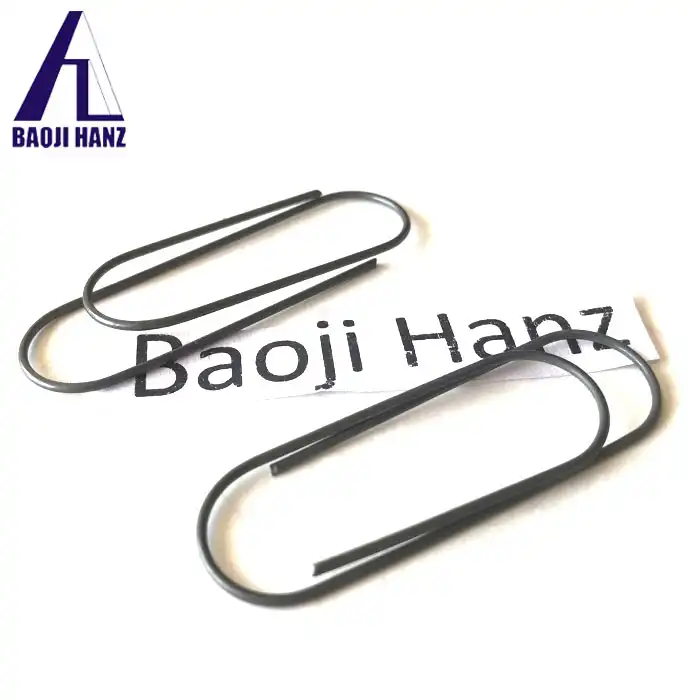

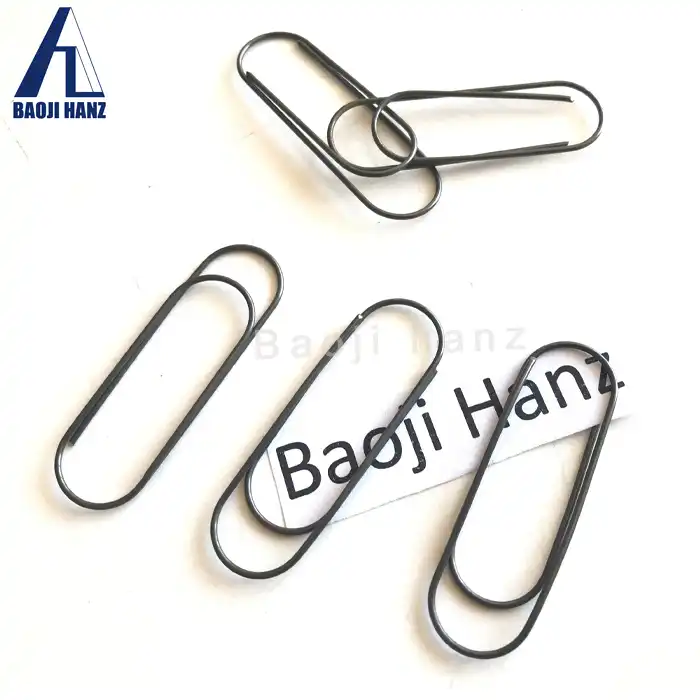

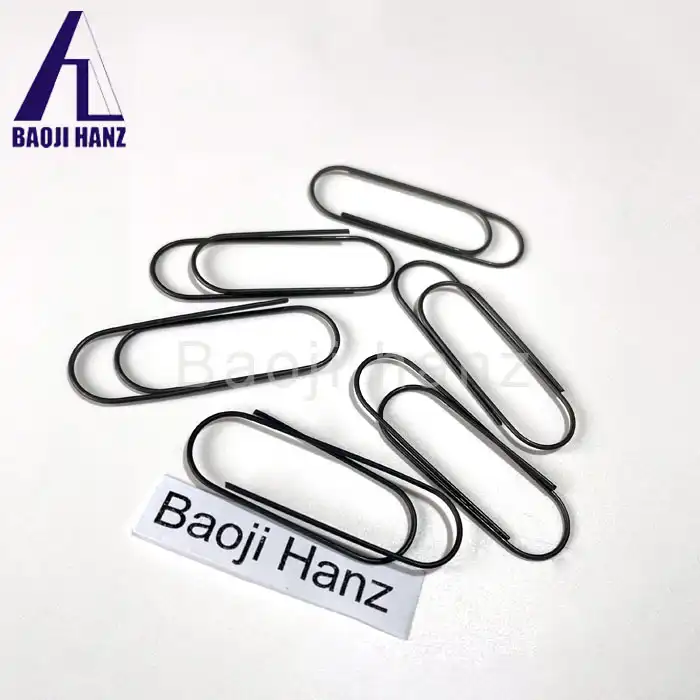

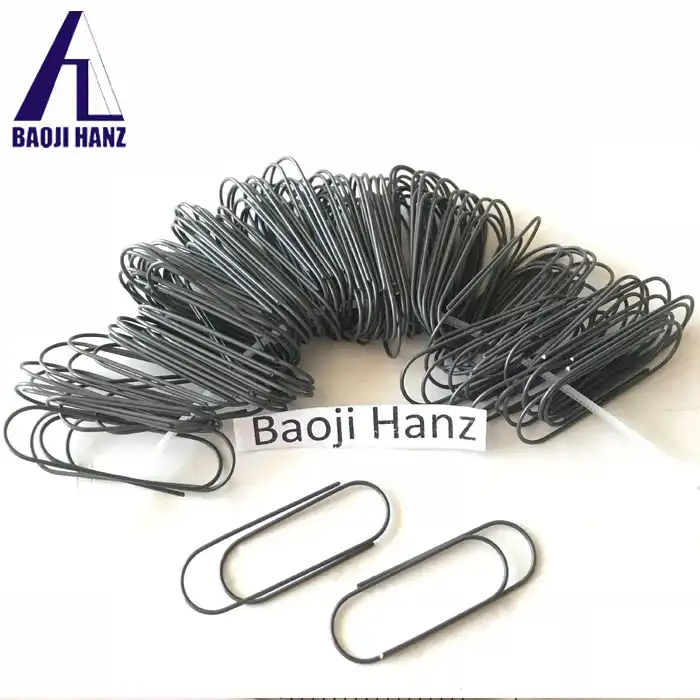

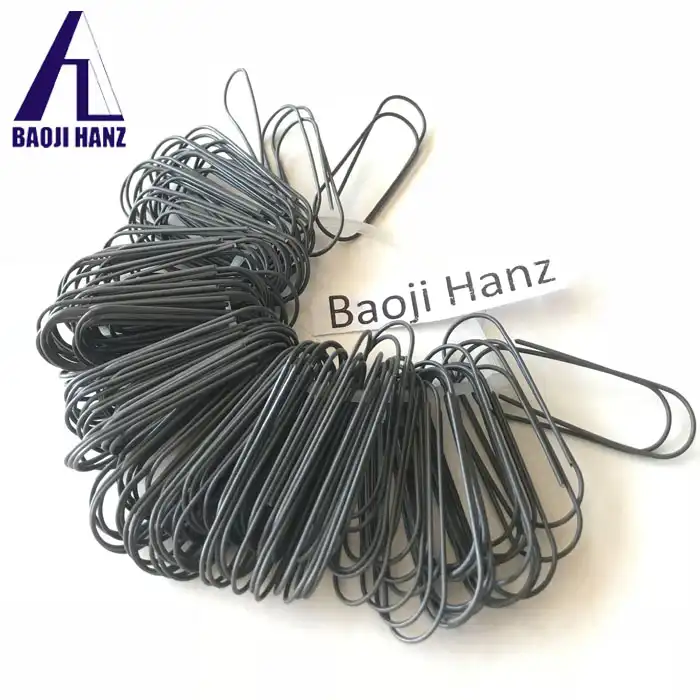

Nitinol clip is a short writing form of nitinol paper clip, it is a deep products of nitinol wire, we deform nitinol wire into nitinol paper clip with customized size. usually wire diameter is 1mm, width 15mm and length 50mm, the AF temperature of nitinol clip is 60℃.
How to make nitinol clip?

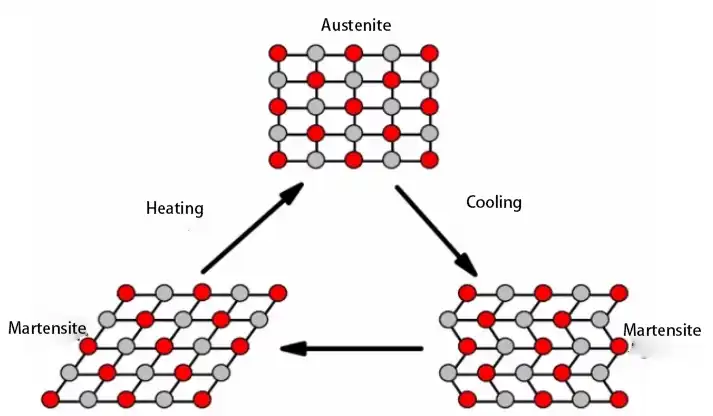

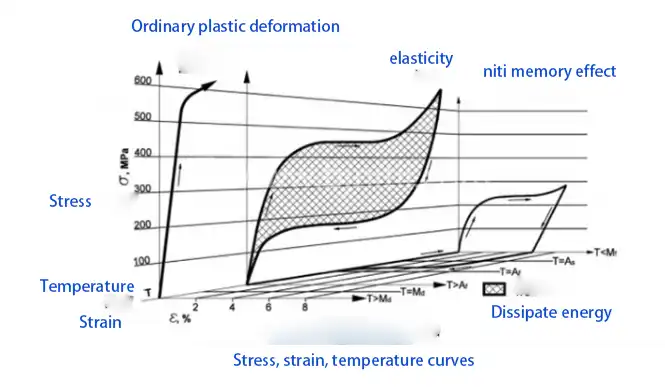

Nitinol alloy material has advanced shape memory effect, due to this advantage, nitinol paper clip is formed by first forming a shape, after plastic deformation and forming it into another shape at a low temperature, it is heated to a certain value, and then the alloy returns to its original shape. This effect is called shape memory effect (SME for short). The shape memory effect can be divided into one-shape memory effect, two-shape memory effect and full memory effect according to the shape recovery.
Nitinol clip specifications:
| Item | Value |
| Tensile strength | 850 MPA |
| Yield strength | 195~690MPA |
| Elongation | 25~50% |
| Chemical composition | NI:55.4%--56.2% C≤0.07 H≤0.005 0≤0.050 N:≤0.05 TI:Bal |
Temperature grade of nitinol clip
| Grade | AF Temperature |
| TiNi-01 | 20℃-40℃ |
| TiNi-02 | 45℃-90℃ |
| TiNi-03 | 5℃-15℃ |
| TiNi-04 | <5℃ |
| TiNi-05 | 33℃±3℃ |
The Importance of Ni-Ti Shape Memory Alloy
Nickel-titanium shape memory alloy is the most widely used shape memory material in the industry. It has good shape memory effect and superelastic behavior, high mechanical properties, good wear and corrosion resistance and good damping properties, and also has good biocompatibility. The strength of nickel-titanium shape memory alloy is more than 1000MPa, the elongation is more than 20%, and the damping properties are 10 times higher than that of ordinary springs. Its corrosion resistance is better than the best stainless steel at present, so it can meet the requirements of various engineering and medical fields. It is an excellent functional material. Nickel-titanium shape memory alloys have a wide range of applications, including electronics, machinery, aerospace, transportation, construction, chemistry, medical devices, energy, household appliances, and everyday necessities.
FAQ
Q1: How long is nitinol clips' service life?
A1: every nitinol paper clip can be reuse, it depends on the environment and application
Q2: Can i custom own size of nitinol paper clip?
A2: of course, we accept customized size and customized temperature of nitinol clip
Q3: Will the nitinol clip property be effected by temperature?
A3: yes, if you have pointed temperature of nitinol clip, please confirm with us before order.
Q4: What is the payment term?
A4: we accept 100% T/T payment in advance, both paypal, wire transfer are workable for us
Q5: How do you ship my order?
A5: we will pack your order safey and ship by express, such as DHL, Fedex, UPS, etc.
Company Introduction

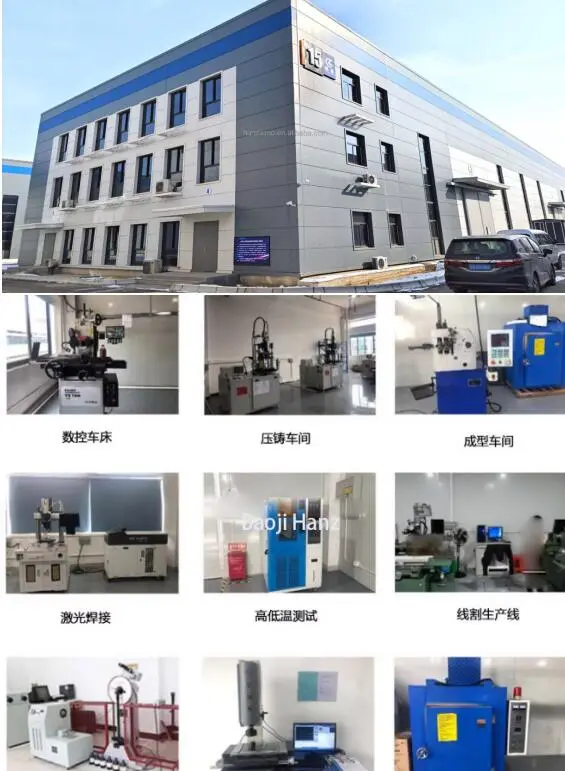

Baoji Hanz Metal Material Co., Ltd is professional manufacture of Nitinol clip product, we are devoted into nickel titanium alloy field for more than 10 years. With advanced technology and high level equipment, our product has been exported to over 10 different area, such as North America, Europe, South Africa, Asia and Oceania, except nitinol paper clip, other products are also in big sale, like nitinol wire, nitinol sheet, nitinol tube and nitinol bar, customized parts is also welcomed to produce. Besides, Hanz People take "Quality is our culture" as a creed, we received countless customers from all over the world and established long term good business relationship with them.
Contact Us
We are believing that our nitinol clip and other nitinol product will occupy the global market in the near future, when you have any inquiry, feel free to contact us! Email: baojihanz-06@hanztech.cn
