Nitinol tubes

Nitinol tubes

1. Basic information
Nitinol alloy tube,
Standards:  ASTM, ASTM F2633-07,
high-precision ,Deep hole working, Large diameter and thin wall,
Outside diameter: Max=30mm, Min=0.1mm,
Thickness: ≥ 0.08mm(machined ),
Length: ≤2000mm(determined by outside diameter and thickness)
Typical Applications:shell of Oil well logging,sports,power,automotive components,marine corrosin,chemical plant,
Technique: Seamless or Welding,
Superelastic nitinol pipe shape memory tube medical use
2.Surface State Options for nitinol tube ,
Black oxide surface ,
As cleaned surface,
Medical grade polished surface ,
Centerless ground surface  ,
Superelastic nitinol pipe shape memory tube medical use
3. Chemical composition nitinol,
Ni: 55.4% --56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05,

4.Standard for nitinol,
ASTM F2063-05  Q/XB1516  Customer specified or Industry Standard,

Superelastic nitinol tubes mechanical properties

Ultimate Tensile Strength	min. 1000 MPa
Fracture Elongation	min. 10 %
Loading Plateau Stress (at 3% strain)	min. 380 MPa
Permanent Set (after 6% strain)	max. 0,3 %
Austenite Finish Temperature(Af)	max. 15 °C

Physical properties of nitinol tube superelastic

Melting Point	1310 °C
Density	6,5 g/cm3
Specific el. Resistivity	82 μΩcm
Coefficient of Thermal Expansion (CTE)	11×10-6 °K
Modulus of Elasticity	41-75 GPa

Baoji Hanz Metal Material Co.,Ltd located in Baoji City, Shaanxi Province, China, which is called titanium valley. With more than 10 years nitinol manufacturing experience, Baoji Hanz can supply nitinol tubes with good specifications , timely delivery, more customers satisfaction.

Niti tube Shipping method Various Mode of Transportation for You : 1. Air transportation 2. Sea transportation 3. By express mail: DHL, FedEx, EMS, UPS, SF-Express,etc.

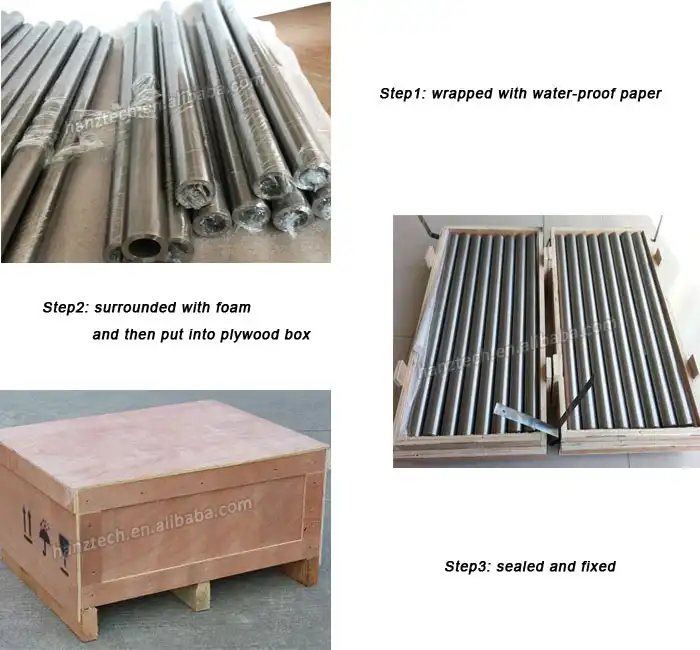

	Nitinol pipes packing 1. Packaging in plastic bag 2. Twisted with bubble plastic 3. Put into platic tube 4. Large quantity will be packed with carton box or wooden case or as customer requirement

Welcome us to send us inquiry on nitinol tubes, click below picture to send us email.

Baoji Hanz can supply different sizes nitinol tube with good specifications, If you are interested in our nitinol tubes, welcome to send us inquiry by email hztech05@hanztech.cn
