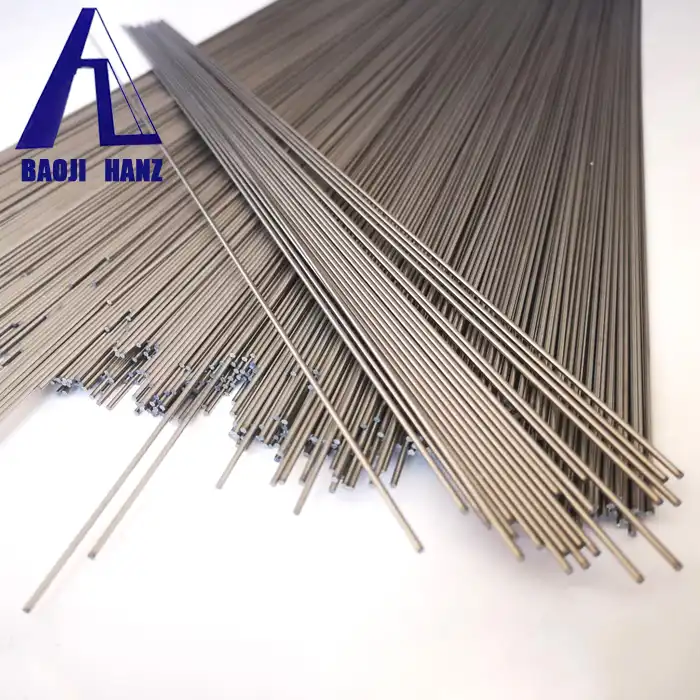

How is Nitinol straight wire manufactured
2026-05-19 12:21:39
Nickel titanium shape memory alloy Nitinol straight wire is made through precise production processes that keep the wire's linear shape and stop it from coiling. This special wire is superelastic, meaning it can return up to 8% of its original shape without permanently changing. It can also change temperatures between -20°C and 100°C. Tensile strengths of 850–1100 MPa, plateau stress levels of 440–480 MPa, and compliance with ASTM F2063 medical-grade standards are some of the most important specs. This makes it necessary for demanding uses in medical devices, aircraft parts, and precision engineering systems.
As someone who works in technical procurement, you know how important it is to choose products that perform consistently under tough conditions. Nitinol straight wire is a big step forward in advanced metalworking because it has special qualities that help engineers solve hard problems in many fields. The main features, specs, and uses of this material that make it necessary for modern production are all covered in this detailed guide.
Advantages of Nitinol straight wire
Excellent superelasticity, gentle orthodontic force, less pain
Good shape memory effect, recover original shape under body temperature
High biocompatibility, safe and hypoallergenic
Low friction, smooth sliding for easy tooth movement
Strong corrosion resistance, anti-rust in oral environment
High toughness, not easy to break
Continuous mild force, improve orthodontic effect
Nitinol straight wire is superelastic shape memory alloy wire, widely used in orthodontics. Different diameters fit different orthodontic stages, round wire for initial alignment, rectangular wire for precise tooth positioning.

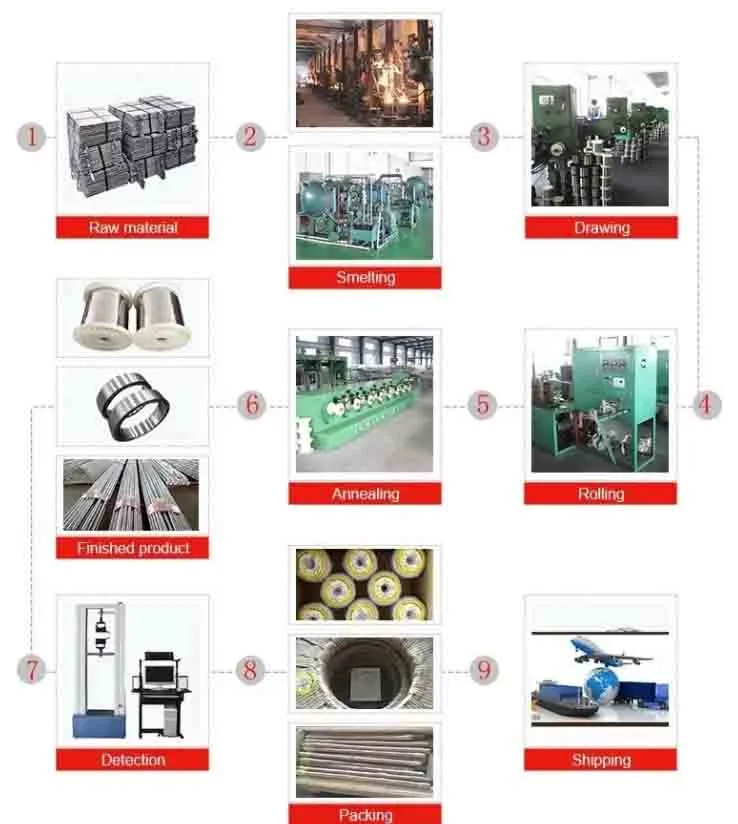

Nitinol straight wire Production Process
1.Material Mixing and Melting: Mix high-purity nickel and titanium raw materials in accordance with the ratio, and conduct vacuum melting to produce nickel-titanium alloy ingots. Strictly control the purity of the components.
2.Rolled into Blank: Heat roll the ingots into rough wire materials, achieving initial shaping.
Drawn and Reduced Diameter: Perform multiple cold drawing processes, gradually reducing the diameter to the required size by the customer, enhancing the density and strength of the wire.
3.Shaping Heat Treatment: Precisely control the temperature for annealing, eliminating internal stress, and endowing the wire with stable superelasticity and shape memory properties.
4.Precision Straightening: Use specialized equipment for straightening treatment to ensure the straightness of the wire, without any bending or twisting.
5.Surface Treatment: Perform polishing, electrolytic polishing, or oxidation anti-rust treatment as needed to enhance corrosion resistance and surface finish.
6.Quality Inspection and Cutting: Conduct comprehensive inspections on size and performance, cut to fixed lengths, then roll and package in separate rolls, and store the finished products.
After finished product inspection, length cutting and packaging are completed. We have standard ready stock, and also support various size customization. If you want to know more about production details or place bulk orders, please contact us via email for more professional technical support and favorable quotations.
