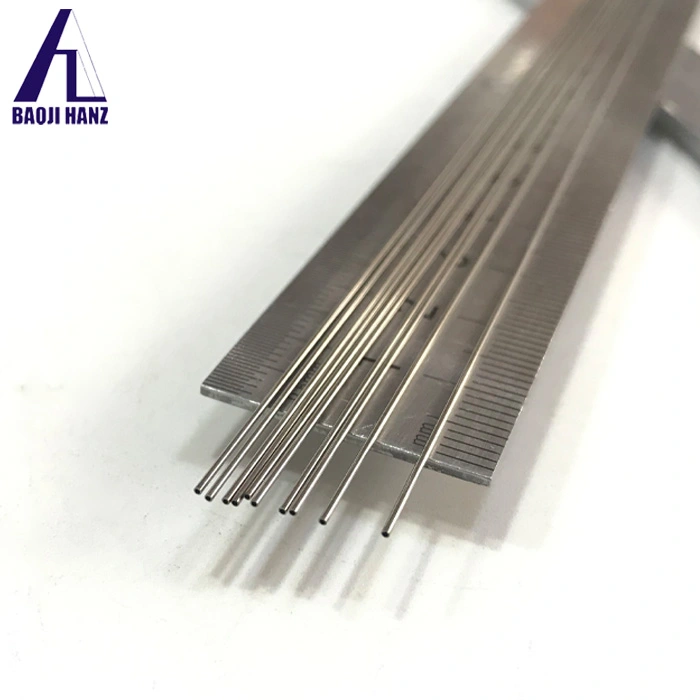

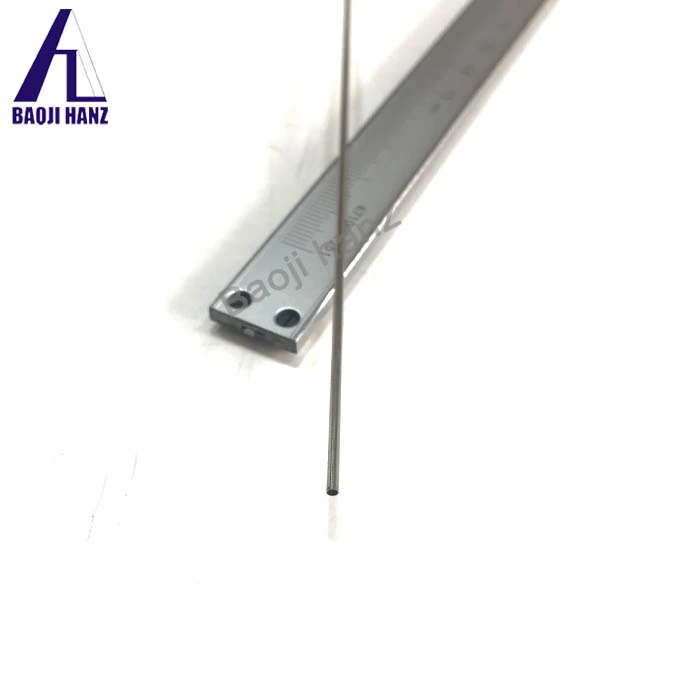

nitinol tube od 0.7mm

nitinol tube od 0.7mm

Nickel titanium tubing is like a 'memory rich, ultra durable metal hose' - it can restore its preset shape at specific temperatures (such as automatically opening a medical stent after implantation), and withstand 8% -10% of large deformations (20 times that of ordinary stainless steel). It can be bent, stretched, and immediately restored upon release. It is also non-toxic, corrosion-resistant, and has high strength, making it particularly suitable for scenarios that require 'repeated deformation without failure' or 'precise shape control'.

nitinol tube od 0.7mm Material : Nickel titanium binary alloy, the composition ratio determines the core properties (such as phase transition temperature, elasticity), and can be customized according to needs;
Two main characteristics of niti tubes:
1. Shape memory: deform at low temperatures and automatically restore its original shape when heated to the "phase transition temperature" (customizable -20 ℃~100 ℃);
2. Super elasticity: When above the phase transition temperature, it can withstand extremely large strains (8% -10%), recover 100% after unloading, and have no permanent deformation;
Additional advantages: biocompatibility (non-toxic and non discriminatory, suitable for in vivo implantation), corrosion resistance (superior to stainless steel), fatigue resistance (with a lifespan of up to 10 million cycles), high strength (tensile strength ≥ 1000MPa);
Core application scenarios: medical (stents, orthodontic archwires), industrial (flexible fixtures, aviation components), consumer electronics (folding screen hinges, wearable devices) - as long as customers have the needs of "recovering after deformation", "not damaged by repeated force", and "requiring biological safety/corrosion resistance", this is the target scenario for nickel titanium tubes.

Compared with ordinary stainless steel pipes, nickel titanium pipes are not 'hard to withstand pressure', but 'elastic to adapt' - stainless steel can be bent once and become useless, while nickel titanium pipes can be bent to 1.1 times their own length and then bounce back; Compared with rubber pipes, nickel titanium pipes have higher strength, high temperature resistance, and can be used for a long time in high-pressure and corrosive environments, which is also the core reason why they can replace traditional materials.

Customized solution:
Outer diameter range: 0.15-20mm (medical grade accuracy can reach ± 0.002mm)
Wall thickness range: 0.035-2mm (uniformity ≤± 5%)
Phase transition temperature (Af point): customizable -20 ℃~100 ℃ (medical grade usually 37 ℃, human body temperature)
Length: Standard parts or cut as needed (minimum order length 100mm)

FAQs about Purchasing Nickel Titanium Tubes

Q1: How much is the price higher than ordinary stainless steel?

A: The unit price is about 5-10 times that of stainless steel, but the comprehensive life cost is only one-third. For example, industrial fixtures are replaced 5 times a month; Nickel titanium fixtures can be used for 5 years,  saving over 90% of maintenance costs.

Q2: Will superelasticity decay with the number of uses?

A: Our product has undergone special heat treatment and has been tested 1 million times under 8% strain, with a recovery rate of over 99.5%, far exceeding industry standards.

Q3: How to ensure product quality?

A: The product complies with GB/T 24627-2023 (Chinese standard) and ASTM F2063 (international standard), and provides material analysis reports and performance test data for each batch.

Contact us

Take action now and experience the 'never tired metal'!
We will arrange a professional technical team to serve you about nitinol tube od 0.7mm, providing you with a one-stop solution from requirement analysis to product delivery, allowing your product to lead competitors in the field of "transformation" applications!
