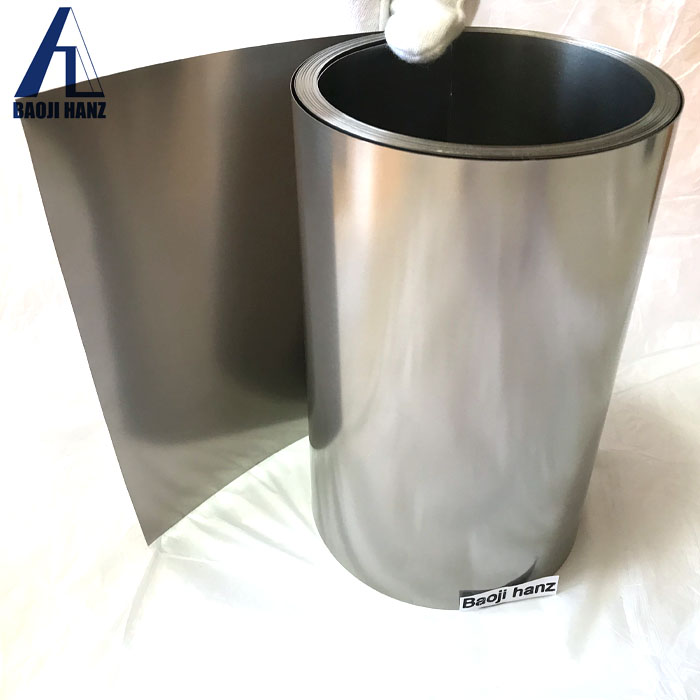

ASTM F2063 Nitinol Strip（Nitinol Foil & Strip）

ASTM F2063 Nitinol Strip is a ultra-thin nickel-titanium alloy sheet with a thickness ranging from 0.03 to 0.5 mm. It possesses three unique advantages: shape memory, super elasticity, and ultra-thinness for easy forming. It is the preferred material for lightweight micro-intelligent structures.

Specifications

Product keywords	ASTM F2063 Nitinol Strip
Thickness	0.03 mm ~ 1.0 mm
Af Temperature	-30 ~ 120°C
Tensile Strength	550 ~ 1900 MPa
Elongation	10% ~ 20%
Surface Condition	Cold Rolled Surface, Polished Surface
Product Description	Used in the electronics industry for manufacturing flexible circuit boards, in the packaging industry for heat-sealing tapes, and in the textile field to provide fabrics with temperature-responsive functionality.

Foils and strips are suitable for high-precision electronic applications. The tensile strength varies widely depending on the processing condition.

Type	Grade	Transfermation temperature AF	Form	Standard
Shape memory nitinol alloy	Ti-Ni-01	20℃~40℃	Wire, Bar, Plate, Tube	customer specified or industry standard
Superelastic nitinol alloy	Ti-Ni-02	45℃~90℃
Superelastic nitinol alloy	TiNi-SS	5℃~5℃
Low temperature superelastic nitinol alloy	TN3	-5℃~-15℃
Low temperature superelastic nitinol alloy	TNC	-20℃~-30℃
Medical Nitinol alloy	TiNi-SS	33+/-3℃		ASTM F2063
Narrow Hysteresis nitinol alloy	Ti-Ni-Cu	As-Ms≤ 5℃	Wire, Bar	customer specified or industry standard
Wide Hysteresis nitinol alloy	Ti-Ni-Fe	As-Ms≤150℃	Wire, Bar	customer specified or industry standard

Advantages of ASTM F2063 Nitinol Strip

1.Super elasticity, bending and rebounding, fatigue resistance; shape memory, recovers to original shape upon temperature change
2.Ultra-thin and lightweight, easy for micro-processing; biocompatible, corrosion-resistant, non-magnetic
3.Excellent shock absorption and damping, can be driven by electric heating for deformation

Applications

Medical: Vascular stents, minimally invasive forceps, dental orthodontics, bone implant elastic fragments

Electronic: Foldable screen hinges, memory eyewear frames, micro elastic components

Industrial: Micro actuators, temperature control valves, shock and damping sheets, pipe tightening linings

Our company is a high-tech enterprise specializing in the research and development, precise rolling and customized processing of ASTM F2063 Nitinol Strip and foil materials. We possess a complete set of ultra-thin precision rolling, heat treatment, and precise testing equipment, which enables us to consistently supply super elastic / memory-type nickel-titanium foils. We can customize the phase transition temperature, thickness, and surface processing. Our products have the advantages of super elasticity, biocompatibility, and corrosion resistance, and are widely used in the medical devices, precision industrial control, and intelligent equipment industries. We can provide customers with one-stop technical services including material selection and forming process matching. For more information, you can contact us via the email provided here.Email:baojihanz-niti@hanztech.cn
